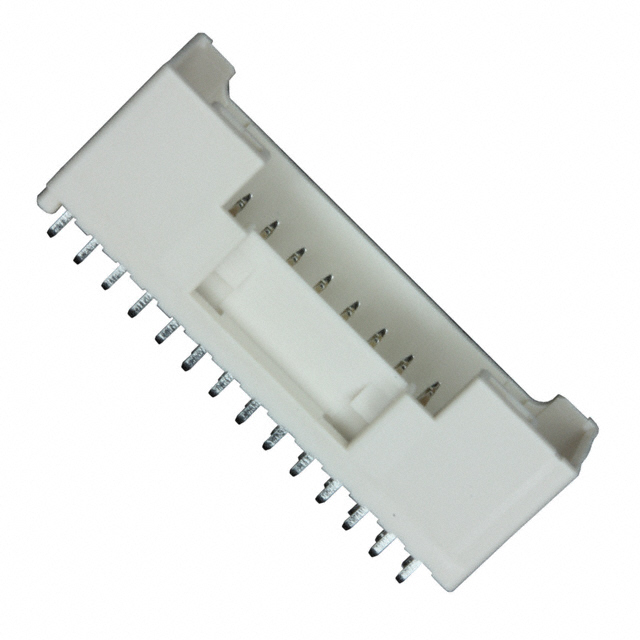

B12B-XADSS-N-A(LF)(SN) JST Connector Header Through Hole 12 position 0.098″ (2.50mm)
Product Attributes
Categories Connectors, Interconnects
Rectangular Connectors – Headers, Male Pins
Manufacturer JST Sales America Inc.
Series XAD
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch – Mating 0.098″ (2.50mm)
Number of Positions 12
Number of Rows 2
Row Spacing – Mating 0.098″ (2.50mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded – 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length – Post 0.138″ (3.50mm)
Insulation Height 0.398″ (10.11mm)
Contact Shape Circular
Contact Finish – Mating Tin
Contact Finish – Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Features Board Guide
Operating Temperature -25C ~ 85C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 3A
Voltage Rating 250V
Mated Stacking Heights 13.8mm
Manufacturer:JST
Datasheet:JST/exad1.pdf
