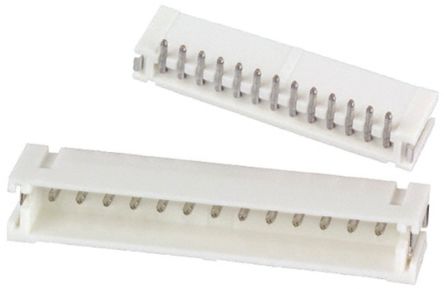

B13B-ZR-SM4-TF(LF)(SN) JST Connector Shrouded Header 13 Position 1.5 mm Pitch Top Entry SMT Solder ST SMD RoHS
The B13B-ZR-SM4-TF(LF)(SN) is a part of ZH series with a mounting height of 5.6mm and a thickness of 3.5mm, while the dimple at the centre of contact ensures reliable contact with the post.
The JST ZH series Pitch Disconnectable Crimp Style Connectors have a compact, low profile design that requires only about 45% of the installation space required by the standard JST 2 mm pitch connector. These 1.5 mm pitch JST ZH Shrouded Headers are Top Entry SMT types and feature a contact retention lances on the resilient housing allow visual confirmation of contact lock-in for easy and secure insertion.
Series ZH
Pitch 1.5mm
Number of Contacts 13
Number of Rows 1
Body Orientation Top Entry
Shrouded/Unshrouded Shrouded
Mounting Type Surface Mount
Connector System Wire to Board
Termination Method Solder
Contact Material Brass
Contact Plating Tin
Current Rating 1.0A
Manufacturer:JST
Datasheet:JST/eZH.pdf
