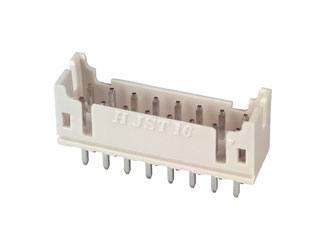

B16B-PHDSS(LF)(SN) JST Connector Header Wire-To-Board 16 Positions Through-Hole Double Row Tin Plated Contacts RoHS
Technical Attributes
No of Positions:16
Pitch:2 mm
Style/Orientation:Straight Header/Plug
Termination:Crimp
Operating Temp Range:-25C to +85C
Voltage Rating:250V
Current Rating:3A
Contact Plating:Tin
Material:Polyamide
No of Rows:2
Gender:Male
Type:Shrouded Header
Mating Type:Detent Lock
Color:Natural
Insulation Resistance:1000MOhm
Mounting Method: Through Hole
Features & Applications
The B16B-PHDSS(LF)(SN) is a part of PHD series that is designed to meet the demand for High-Density and Low-Profile Connection. It is also known as Disconnectable Crimp Connector. It has an Operating Temperature range of -25 C to +85 C.
Product Features:
Compact
Reliable contacts
Fully shrouded Header
Current Rating: 3A AC, DC(AWG #22)
Voltage Rating: 250V AC, DC
Contact Resistance: Initial value/10mOhm max.
Insulation Resistance: 1000 MOhm min
Withstanding voltage: 800V AC/minute
Applicable wire: AWG #28 to #22
Applicable PC board thickness: 1.6mm
Double-row construction
The box contact supplies stable contact performance
Manufacturer:JST
Datasheet:B16B-PUDSS-1(LF)(SN).pdf
