Description

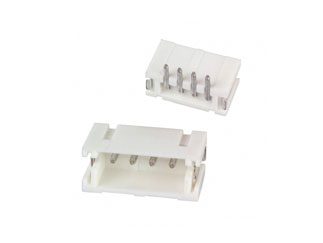

B4B-ZR-SM4-TFT(LF)(SN) JST Connector Header 4 Position 1.5 mm Pitch Top Entry Surface Mount Shrouded 0.059′ (1.50mm) Rectangular Connectors-Headers, Male Pins RoHS
Technical Attributes
Attributes Table
No of Positions:4
Pitch:1.5 mm
Style/Orientation:Straight Header/Plug
Termination:Solder
Operating Temp Range:-25C to +85C
Voltage Rating:50V
Current Rating:1A
Contact Plating:Tin
Material:Polyamide
No of Rows:1
Gender:Male
Type:Shrouded Header
Mating Type:Detent Lock
Color:Natural
Insulation Resistance:500Mohm
Mounting Method:Surface Mount
The B4B-ZR-SM4-TF(LF)(SN) is a part of ZR Series that ensure reliable connection even during severe environmental conditions and is a Disconnectable Insulation Displacement Connector. It has an Operating Temperature of -25C to +85C.
Manufacturer:Electronic Components
Datasheet:JST/eZH.pdf
