Description

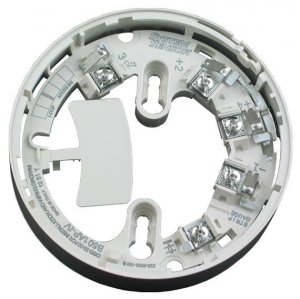

Notifier B501AP-IV Detector Base Ivory
The Notifier B501AP-IV Detector Base is an analogue addressable detector base. This base comes in Ivory to match the Ivory detectors in the Notifier range.
The B501AP Base is designed to accept S200 detectors and has a tamper resistant feature which can be enabled by breaking off a plastic tab. When enabled the detector cannot be removed without a suitable tool. The base can be labelled with a break-off address tag. Available in white, ivory and black colours.
Features
• Width: 102mm
• Weight: 39 g
• Height: 22.5 mm
• Mounting to mounting boxes with a hole spacing of 60mm. Screw size max diameter 4 mm (head diameter 8 mm).
• -30°C to +60°C operating temperature range
• 10% to 93% Relative Operating Humidity
• Compatible with all S200 addressable sensors
Manufacturer:Electronic Components
Datasheet:B501AP-IV.pdf
