Description

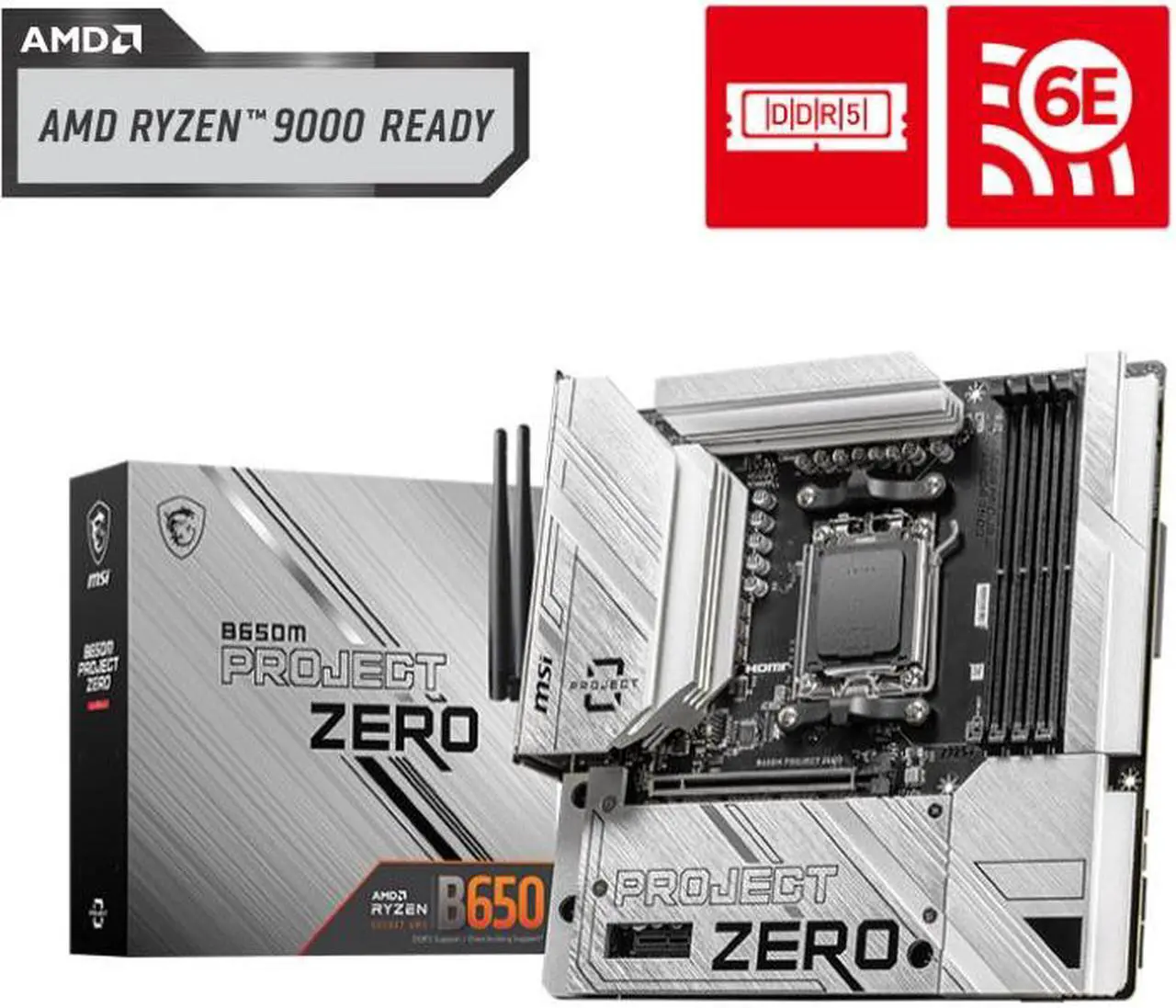

B650M PROJECT ZERO MSI DDR5 mATX AM5 AMD B650 Ryzen 7000 SATA DDR5 PCI-E x16 slot 2x M.2 Wi-Fi 6E Bluetooth 6Gb/s mATX Back Connect Design Motherboard
B650M PROJECT ZERO moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card’s aesthetic design to be fully displayed.
Supports AMD Ryzen 7000 Series and Ryzen 9000 Series processors
Bios update MAY required when used with 9000 Series processors
Back-Connect Design: Move the connectors to the back to provide a cleaner and neater front view and significantly reduces the difficulty of cable management.
Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
Lightning Gen4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
M.2 Shield FROZR: M.2 thermal accessory keeps M.2 SSDs safe while preventing throttling, making them run faster.
Wi-Fi 6E:The latest wireless solution supports 6GHz spectrum, MU-MIMO
and BSS color technology, delivering speeds up to 2400Mbps.
Specs: PRO-H610M-G-DDR4
Brand MSI
Model B650M PROJECT ZERO
Supported CPUCPU Socket Type AM5
CPU Type Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetsChipset AMD B650
MemoryNumber of Memory Slots 4x288pin (DDR5)
Memory Standard Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
– 1DPC 1R Max speed up to 7600+ MHz
– 1DPC 2R Max speed up to 6400+ MHz
– 2DPC 1R Max speed up to 6400+ MHz
– 2DPC 2R Max speed up to 5400+ MHz
Maximum Memory Supported 128GB
Expansion SlotsPCI Express 4.0 x16 1x PCI-E x16 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI Express x1 1x PCI-E x1 slot
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage DevicesSerial ATA (SATA) 4 x SATA 6Gb/s
M.2 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
SATA RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
* SATA_A1_A2 do not support RAID function.
Onboard AudioAudio Chipset Realtek ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
Audio Channels 7.1 Channels
Onboard LANLAN Chipset Realtek RTL8125BG 2.5Gbps LAN
Max LAN Speed 2.5Gbps
Wireless LAN AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
Bluetooth Supports Bluetooth 5.3**
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Rear Panel PortsBack I/O Ports 1 x DisplayPort
1 x HDMI
1 x 2.5G LAN
2 x USB 2.0
2 x USB 3.2 Gen 1 5Gbps (Type-A)
3 x USB 3.2 Gen 2 10Gbps (Type-A)
1 x USB 3.2 Gen 2 10Gbps (Type-C)
1 x USB 3.2 Gen 2×2 20Gbps (Type-C)
2 x Wi-Fi / Bluetooth Antenna Bracket
3 x Audio connectors
1 x Flash BIOS Button
1 x Clear CMOS Button
Internal I/O ConnectorsOnboard USB 4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
Other Connectors 1x CPU Fan
1x Pump Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x TPM pin header(Support TPM 2.0)
Physical SpecForm Factor Micro ATX (Back Connect)
Dimensions (W x L) 9.6″ x 9.6″
Power Pin 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
Software FeatureWindows 11 Supported
FeaturesFeatures Supports AMD Ryzen™ 7000 Series Desktop Processors
Supports DDR5 Memory, up to 7600+(OC) MHz
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
Audio Boost: Reward your ears with studio grade sound
