Description

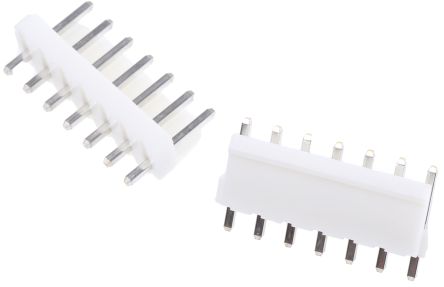

B7P-VH(LF)(SN) JST Manufacturing VH Series 7 Position 3.96 mm Top Entry Wire to Board Locking Header Connector RoHS
Technical Attributes
No of Positions: 7
Pitch: 3.96 mm
Style/Orientation: Straight Header/Plug
Termination: Solder
Operating Temp Range: -25°C to +85°C
Voltage Rating: 250V
Current Rating: 10A
Contact Plating: Tin
Material: Polybutylene Terephthalate
No of Rows: 1
Gender: Male
Type: Shrouded Header
Color: Natural
Insulation Resistance: 1000M?
Mounting Method: PCB Mount
Manufacturer Part Number: B7P-VH(LF)(SN)
JST
