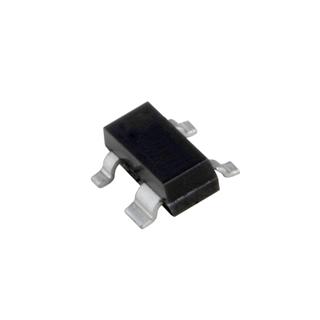

BAS28 Siemens Dual Switching Diode (Isolated) 85V 0.215A SMT / SMD SOT-143
The BAS28 is a Two high-speed switching diodes fabricated in planar technology, and encapsulated in a small SOT143B Surface-Mounted Device (SMD) plastic package. The diodes are not connected.
Features:
High switching speed: trr = 4 ns
Reverse voltage: VR = 75 V
Repetitive peak reverse voltage: VRRM = 85 V
Repetitive peak forward current: IFRM = 500 mA
AEC-Q101 qualified
Small SMD package
Applications
High-speed switching
– See more at: Siemens – Siemens Bas28 Diode; Diode Type:Small Signal; Repetitive Reverse Voltage Max, Vrrm:85V; Forward Current Avg Rectified, IF(AV):215mA; Forward Surge Current Max, Ifsm:4A; Reverse Recovery Time, trr:4ns; Forward Voltage Max, VF:1.25V
Manufacturer:Infineon Technologies
Datasheet:Infineon-BAS28SERIES-DS-v01_01-en.pdf
