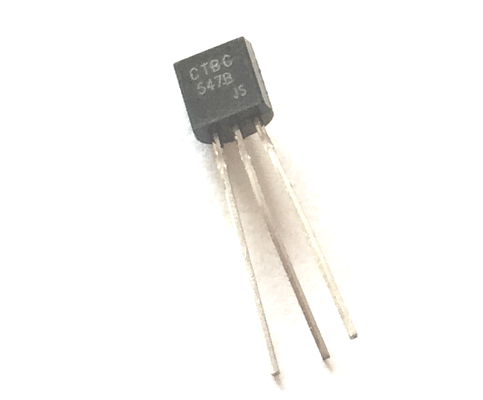

BC547B Bipolar Transistor GP BJT NPN 45V 0.1A 500mW 3-Pin TO-92 RoHS
BC547 is a NPN transistor hence the collector and emitter will be left open (Reverse biased) when the base pin is held at ground and will be closed (Forward biased) when a signal is provided to base pin. BC547 has a gain value of 110 to 800, this value determines the amplification capacity of the transistor. The maximum amount of current that could flow through the Collector pin is 100mA, hence we cannot connect loads that consume more than 100mA using this transistor. To bias a transistor we have to supply current to base pin, this current (IB) should be limited to 5mA.
Specification
Package: TO-92-3
Transistor Polarity: NPN
Maximum Collector Emitter Voltage: 45V
Maximum Collector Base Voltage: 50V
Minimum DC Current Gain: 330 @ .002A
Power Dissipation: 625mW
Configuration: Single
Maximum Collector Emitter Saturation Voltage: 0.6V @ 11mA
Number of Elements per Chip: 1
Output Power: 625mW
Category: Bipolar Small Signal
Maximum Emitter Base Voltage: 6V
Maximum Base Emitter Saturation Voltage: 0.7V@0.5mA@10mA
Maximum Operating Frequency: 100Mhz
Maximum Collector Current: 0.1A
Minimum Operating Temperature: -55C
Maximum Operating Temperature: 150C
Mounting: Through Hole
Packaging: Bulk
Pins: 3
Family: BC547
Width: 4.19mm
Height: 5.33mm
Product Length: 5.2mm
Product Type: GP BJT
Manufacturer:Electronic Components
Datasheet:BC547B-LGE.pdf
