Description

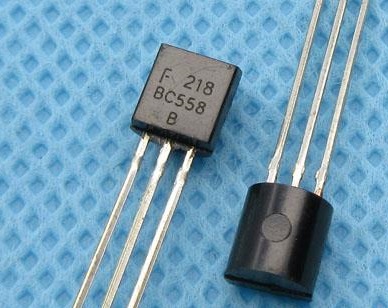

BC558B Motorola General Purpose BJT PNP Transistor 30V 0.1A TO-92 Through Hole
The PNP Bipolar Transistor is designed for use in linear and switching applications. The device is housed in the TO-92 package, which is designed for medium power applications.
Description
- TRANSISTOR, PNP, -30V, TO-92
- Transistor Polarity:PNP
- Collector Emitter Voltage, V(br)ceo:-30V
- Transition Frequency Typ, ft:150MHz
- Power Dissipation, Pd:500mW
- DC Collector Current:-100mA
- DC Current Gain Max (hfe):110
- RoHS Compliant: Yes
Manufacturer:Motorola
Datasheet:Motorola/BC557A.pdf
