Description
Eaton Bussmann BK/MDA-15-R Fuse, Cartridge, Time Delay, 15 A, 250 V, 6.3mm x 32mm, 1/4″ x 1-1/4″, MDA Series Lead free / RoHS: Compliant

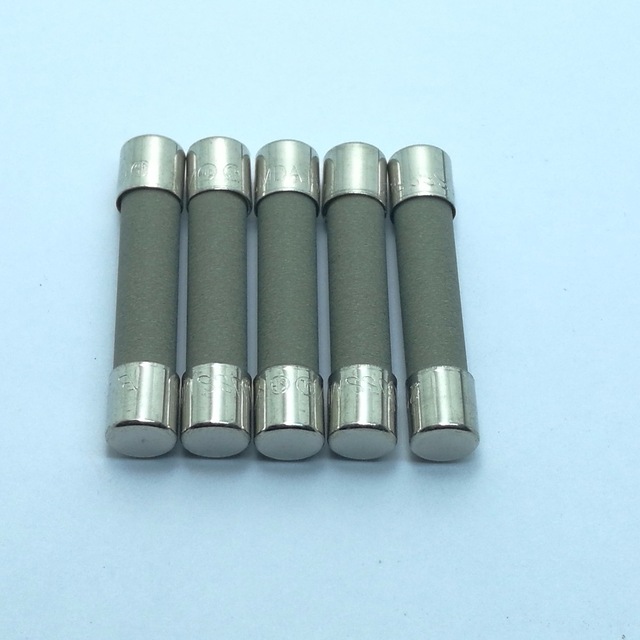

The BK/MDA-15-R is a MDA-series 15A 250VAC time-delay Cartridge Fuse with ceramic tube, nickel-plated brass endcap. UL listed product meets standard 248-14.
0.107mV Maximum voltage drop
Applications
Safety
Specifications
Manufacturer: Eaton
Product Category: Cartridge Fuses
RoHS
Series: MDA
Product: Ceramic Fuse
Current Rating: 15 A
Fuse Size / Group: 3AB (6.3 mm x 32 mm)
Voltage Rating AC: 250 VAC
Interrupt Rating: 750 A
Mounting Style: Holder / Clip
Termination Style: Clip
Packaging: Bulk
Resistance: 5.53 mOhms
Body Style: Cylindrical
Diameter: 6.35 mm
Indicator Style: Without Indicator
Length: 31.75 mm
Brand: Bussmann / Eaton
CNHTS: 8536100000
HTS Code: 8536100040
Product Type: Electronic Time Delay Ferrule Fuse
Factory Pack Quantity: 100
Subcategory: Fuses
TARIC: 8536105090
Part # Aliases: BK-MDA-15-R
Unit Weight: 0.089067 oz
Manufacturer Part Number: BK/MDA-15-R
