Description

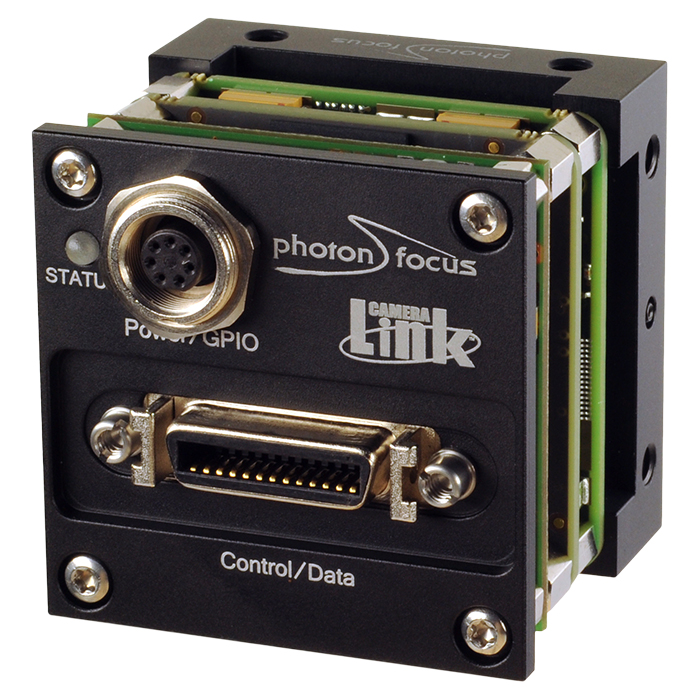

BL1-D1024E-160-CL-12 Photonfocus Board Level Camera 1″, 1024 x 1024, 150fps, Camera Link Monochrome CMOS global shutter LinLog offset/gain correction base interface 80MHz pixel clock 2 taps 12 bits per pixel RoHS
The board level camera series BL1-D1024E-CL is derived from the MV1-D1024E-CL camera series and is in the feature set 100% compatible. The differences are in the mechanical construction of the camera case.
The camera series BL1-D1024E-CL is based on the Photonfocus A1024B CMOS image sensor. This Photonfocus CMOS sensor with a full well capacity (FWC) of 200 ke- is optimized for high dynamic range applications and a high signal to noise ratio (SNR). The cameras have the CameraLink Base interface.
These cameras focus on demanding applications in industrial image processing. They offer an extraordinary wide dynamic range due to the LinLog technology and a high framerate combined with high resolution. Due to the global shutter, even high-speed applications with exposure times in the s-area are possible.
Sensor:Photonfocus, A1024
Frame rate:150fps
Optical format:1″
Sensor Resolution:1024 x 1024
Pixel size:10.6m x 10.6m
I/O Input:1x Opto-isolated
I/O Output:1x Opto-isolated
Dimensions:46 x 46 x 40mm3
Configurable region of interest (ROI)
Up to 512 regions of interest (MROI)
Decimation in y-direction
Image correction
2 look-up tables (12-to-8Bit) on user-defined image region (Region-LUT)
Constant frame rate independent of exposure time
Crosshairs overlay on the image
Temperature monitoring of camera
Camera informations readable over SDK
Ultra low trigger delay and low trigger jitter
Extended trigger input and strobe output functionality
Status line in picture
Manufacturer:Electronic Components
Datasheet:BL1-D1024E-160-CL.pdf
