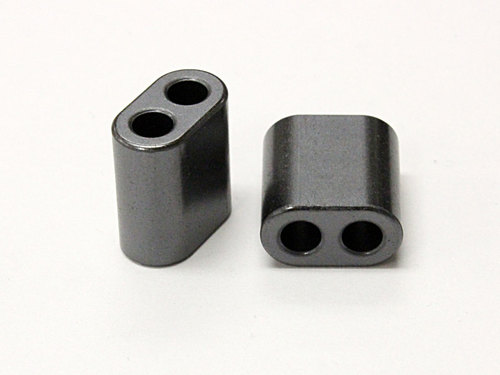

BN-43-202 Amidon Toroid Aperture Core Ferrite 2 Hole Mini Aperture Ferrite Toroid Core
Material: 43
Permeability (i): 800
Min. AL (nH): 2890
Length (metric): 13.3 mm
Width (metric): 7.5 mm
Height (metric): 14.35 mm
Holes diameter (metric): 3.8 mm
Length (imperial): 0.525 in
Width (imperial): 0.295 in
Height (imperial): 0.565 in
Holes diameter (imperial): 0.15 in
BN43-202 Mini Aperture
One Aperture, picture is for illustration purposes.
Wideband Transformers 5 – 400 MHz
Power Transformers 0.5 – 30 MHz
RFI Suppression 5 – 500 MHz
AL=2200 +/- 20 % uH=(AL*Turns2)/1000
Actual measured AL using 10 turns #28 wire
These are small!
A=0.525 in / 13.3 mm +/- 0.6 mm
B=0.565 in / 14.35 mm +/- 0.3 mm
C=0.295 in / 7.5 mm mm +/- 0.35 mm
D=0.225 in / 5.7 mm +/- 0.25 mm
E=0.150 in / 3.8 mm +/- 0.25 mm
