Description

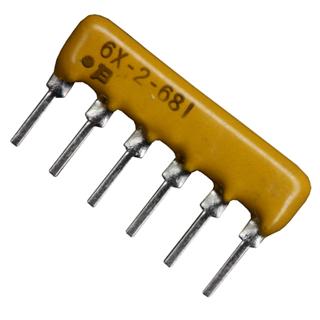

BOURNS 4606X-102-681 SIP RES NET ISOLATED 680 OHM 6-SIP
| Specifications |
|
| Resistance (Ohms) |
680 |
| Tolerance |
±2% |
| Power Per Element |
300mW |
| Circuit Type |
Isolated |
| Number of Pins |
6 |
| Packaging |
Bulk |
| Number of Resistors |
3 |
| Package / Case |
6-SIP |
| Mounting Type |
Through Hole |
| Temperature Coefficient |
±100ppm/°C |
| Lead Free Status |
Contains Lead |
| RoHS Status |
RoHS Non-Compliant |
|
|
| Product Category: |
Resistor Networks & Arrays |
|
|
|
|
|
|
|
|
| Power Rating: |
0.75 Watt (3/4 Watt) |
|
|
| Temperature Coefficient: |
+/- 100 PPM / C |
|
|
| Operating Temperature Range: |
– 55 C to + 125 C |
|
|
|
|
|
|
|
|
|
|
| Dimensions: |
3.43 mm W x 5.08 mm L |
|
|
|
|
| Termination Style: |
Through Hole |
|
|
| Body Material: |
Epoxy resin |
|
|
|
|
The Bourns 4600X series are thick film, resistor networks in single inline package. The number of resistor networks and configuration type are selected based on part numbering. These resistor networks helps in space sensitive applications by minimizing space, reducing costs, increasing board yields and reliability by reducing component count. Typical applications include computer, telephone equipment, telecommunication testers, satellites, optical networking and voice recognition equipment.
- Resistance value ranges from 10 ohm to 10Mohm
- Tolerance and power rating is based on network circuits
- Operating voltage of 100V
- Temperature coefficient is ±100ppm/°C and ±250ppm/°C available
- Operating temperature ranges from -55°C to +125°C
- Low profile is compatible with DIP package
- Wide assortment of pin packages enhances design flexibility
- Recommended for rosin flux and solvent clean or no clean flux processes
Applications
Industrial; Consumer Electronics; Portable Devices; Power Management
Manufacturer Part Number: 4606X102681
Bourns
