Description
BPT-14-8423-2.5 Brady Circuit Board and Component Identification Labels 16.51mm x 5.08mm 2500pcs/roll RoHS

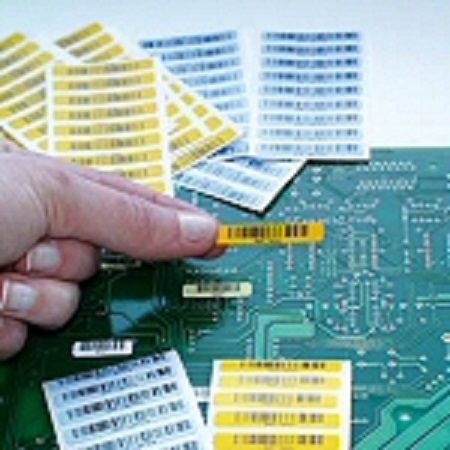

Bradybondz polyester labels for Brady BBP11 and BBP12: PR200Plus: PR300Plus and PR600Plus printers. Ideal for electrical labelling such as Circuit Board & Component Identification. UL Recognised and CSA Accepted.
Specifications
Key Characteristics Article Number 236707
Order Reference BPT-14-8423-2.5
Total Qty per Pack 2500 Label(s) / Roll
QTY. per Row 5
Application(s) Circuit board & component identification
Board Application Through Hole – Top
Ribbon Series R6000HF
Dimensions Size – Width (mm) 16.51 mm
Size – Height (mm) 5.08 mm
Core – Diameter (mm) 25.40 mm
Horizontal Repeat (mm) 19.51 mm
Vertical Repeat (mm) 8.08 mm
Web Width (mm) 108.00 mm
Dimensions 16.51 mm W x 5.08 mm H
Material Characteristics Brady Material No. B-8423 (View Technical Data Sheet)
Brady Material Type Polyester
Thickness (mm) 0.07
Colour White
Max. Service Temp. °C 110 °C
Min. Service Temp. °C -70 °C
Adhesive (Y/N) Yes
Adhesive Permanent Acrylic
After Process Yes, this material will work with this application
Finish Satin
Surface For smooth surfaces
Surface Mount Technology SMT No, this material does not work with this application
Through Hole Technology Top: Yes. In extreme high temperatures, testing of this material is recommended, Bottom: No
Product Features Shape Rectangle
Compatibility Printer Compatibility BBP12; BBP11; PR200Plus; PR300Plus; PR600Plus; BP1244; BP1344; BP4000; BP4320
Compliance RoHS Compliance Status Compliant with Directive 2011/65/EU and 2015/863
REACH SVHC Status Part does not contain an SVHC
Approval/Compliance UL Recognised; CSA Accepted
Manufacturer:Electronic Components
Datasheet:bpt-14-8423-2.5.pdf
