Description

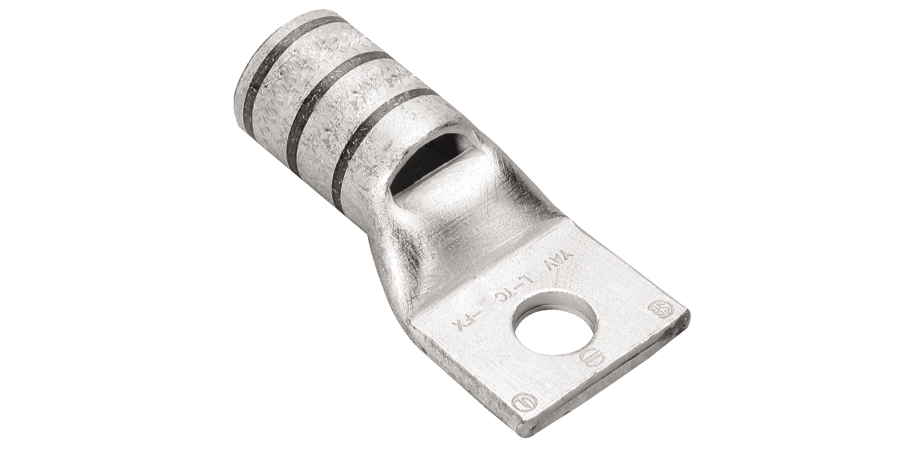

BURNDY YAV27L-TC38-FX Copper Compression Lug, 1 Hole w/ Inspection Window, 3/0 Flex, 3/8″ Stud, Short Barrel, Tin Plated
Tongue AngleStraight
Length (in)2.34
Barrell StyleChamfered
Bolt Hole Size (in)0.39
Barrel TypeStandard
Thickness0.14
B Length (in)1.00
Pad Width (in)1.03
Strip Length1
General
Number of Holes1
Product DescriptionCopper Compression Lug, 1 Hole w/ Inspection Window, 3/0 Flex, 3/8″ Stud, Short Barrel, Tin Plated
Conductor(s)
Flex (Class G) Size – Range3/0 AWG
Flex (Class H) Size – Range3/0 AWG
Flex (Class I) Size – Range3/0 AWG
Copper Solid Size (Range)N/A
DLO Size (Range)3/0 (450/#24) DLO
Copper Stranded (Range)3/0 AWG
Physical
Type of PlatingTin
Bolt Hole Size3/8
Color CodeOrange
Plated (Yes or No)Y
Index Number14
Product MaterialCopper
Approvals / Certifications
UL ListedY
CSA CertifiedY
ROHS CompatibleCompliant
UL RecognizedN
CULUSN
Other Features
UPC7818100225111
Manufacturer Part Number: YAV27LTC38FX
Manufacturer: Burndy
