Description

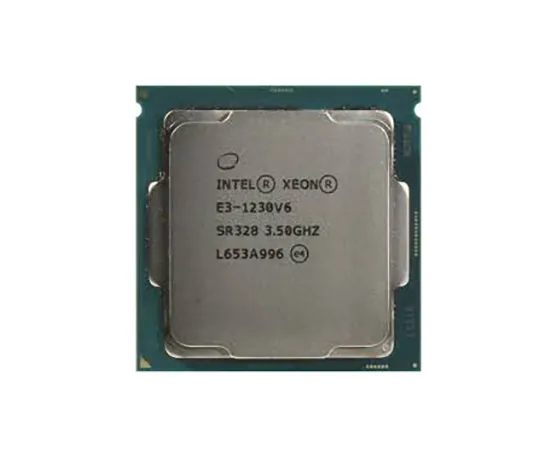

BX80677E31230V6 Intel Intel Xeon E3-1230 V6 Quad Core 3.5GHz Server Processor 8GT/s DMI3 8MB SmartCache Socket 72W Kaby Lake (3.9 GHz Turbo) LGA 1151
Intel Xeon E3-1200 v6 Series Processor
Essential Performance for Professional Compute
The Xeon E3 processor family is a great choice entry workstation and entry server solutions, which establish a foundation of capability to support small businesses’ growing and changing demands. The Xeon E3 processor family delivers trusted performance and proven innovation that will help you win and stay ahead of the competition. A host of hardware-enhanced security and reliability features help protect your data – the valuable asset for a small business and also the connection to customers, sales, inventory, financial records, and ultimately growth. Position your company for growth with a powerful and affordable small business server based on the Intel Xeon processor E3 family.
The Xeon E3-1230 V6 is based on Kaby Lake micro architecture and manufactured with 14nm process. It has quad cores (eight threads), and operates at 3.50 GHz base frequency with 3.9 GHz max turbo frequency.
Specifications Overview
Model BX80677E31230V6
Release Date April 2017
Series Intel Xeon E3 Family
Core Name Kaby Lake
Socket LGA1151
Integrated Graphics None
CPU Cores 4
CPU Threads 8
CPU Clock Rate 3500 MHz
CPU Turbo Clock Rate 3900 MHz
TDP 72 W
CPU Cooler included Yes
Manufacturing Process 14 nm
Maximum Supported Memory 64 GB
Cache L3 8 MB
Intel® Turbo Boost Technology dynamically increases the processor’s frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.
Intel® vPro™ Technology is a set of security and manageability capabilities built into the processor aimed at addressing four critical areas of IT security: 1) Threat management, including protection from rootkits, viruses, and malware 2) Identity and web site access point protection 3) Confidential personal and business data protection 4) Remote and local monitoring, remediation, and repair of PCs and workstations.
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.
