Description
BX8071514900F Intel Core i9-14900F 14th Gen Raptor Lake 24-Core (8P+16E) 65W None Integrated Graphics Processor LGA 1700

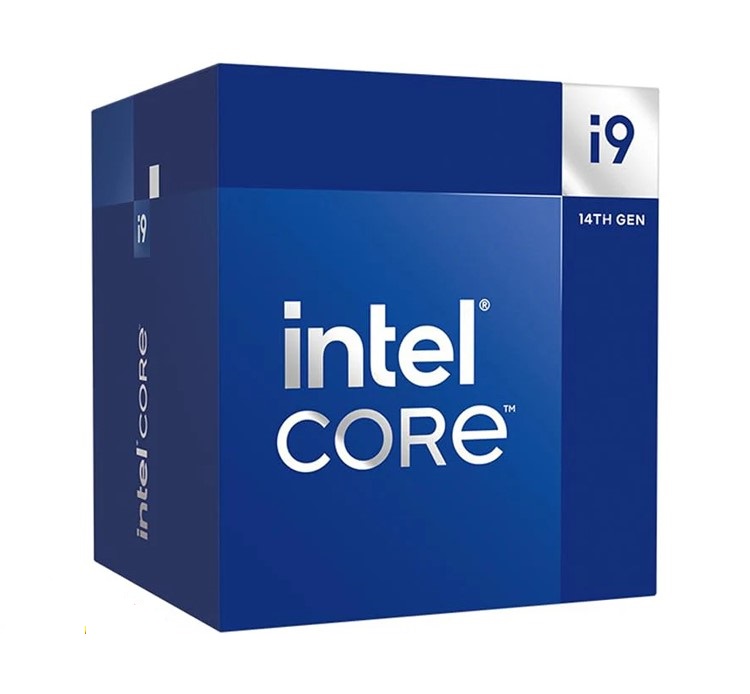

14th generation Intel Core i9-14900F 24-core processor with 36MB Intel Smart Cache, boxed
32 threads for lightning-fast rendering workloads; base clock: 2GHz; boost clock: up to 5.8GHz
Supports up to 192GB DDR5/DDR4 memory including ECC, up to 5600 MT/s and 3200 MT/s data transfer rate, two memory channels maximum; 89.6 GB/s max memory bandwidth
Power up your productivity, gaming, and content creation with the Intel Core i9-14900F 2 GHz 24-Core LGA 1700 Processor. Built with the Intel 7 process, this 14th generation desktop processor delivers improved power efficiency while fitting the LGA 1700 socket. Featuring an optimized Hybrid Core Architecture, the Core i9-14900F powers demanding applications and games with eight 2 GHz Performance-cores while the 16 low-voltage Efficient-cores handle background tasks for smooth multitasking. The built-in Intel Thread Director ensures that the two work seamlessly together by dynamically and intelligently assigning workloads to the right core at the right time.
With 36MB of cache and a 5.6 GHz Turbo Boost Max 3.0 frequency that can be pushed higher with Thermal Velocity Boost and Adaptive Boost technologies, this processor is made to handle almost any workload. The Core i9-14900F also supports PCI Express 5.0 and up to 192GB of dual-channel DDR5 ECC memory at 5600 MHz.
The Core i9-14900F does not include integrated graphics, meaning that users will need to purchase a separate dedicated graphics card. A Laminar RH1 cooler is included.
Hybrid Core Design
Performance-cores provide the speed to handle high-end games and demanding applications while low-priority and background tasks such as streaming video, playing music, and encoding media are handled by the processor’s Efficient-cores.
Intel Thread Director
The Intel Thread Director is built into the CPU’s cores, working with the operating system to ensure each of the 32 threads are assigned to the right core at the right time.
PCIe 4.0 & 5.0
This processor supports up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, delivering 20 lanes in total for exceptional data throughput with compatible devices.
Thermal Velocity Boost
Intel Thermal Velocity Boost (TVB) is a technology that unlocks extra CPU performance by pushing the maximum frequency to 5.8 GHz when thermal headroom and turbo power budget are available. It is ideal for burst workloads that have sudden spikes in CPU utilization, providing a temporary performance boost to help avoid slowdowns.
Adaptive Boost
Intel Adaptive Boost Technology opportunistically increases the all-core turbo frequency beyond previous Turbo Boost clock speeds, even when Thermal Velocity Boost conditions aren’t met. Benefits can be seen with multi-threaded programs that scale with multiple cores, which includes many games. It can also help in multitasking situations, such as when gaming, streaming, and chatting all at once through different applications.
Gaussian & Neural Accelerator 3.0
Gaussian and Neural Accelerator 3.0 (GNA) technology helps with noise suppression while enhancing background blurring during video chats.
Intel Deep Learning Boost
Accelerates AI inference to improve performance for deep learning workloads.
Specifications
Manufacturer: Intel
Product Category: CPU – Central Processing Units
Product: Desktop Processors
Core: Core i9-14900F
Data Bus Width: 64 bit
Number of Cores: 24 Core
Package / Case: FCLGA-1700
Maximum Clock Frequency: 2 GHz
Cache Memory: 36 MB
Number of Threads: 32 Thread
TDP – Max: 65 W
Memory Size: 192 GB
Memory Type: DDR4-3200, DDR5-5600
System Bus Speed: 32 GT/s
System Bus Type: PCI
Family: Intel Core i9
Code Name: Raptor Lake
Processor Series: i9-14900F
Embedded Options: Non-Embedded
Brand: Intel
Mounting Style: SMD/SMT
Product Type: CPU – Central Processing Units
Subcategory: Embedded Processors & Controllers
Turbo Frequency – Max: 5.8 GHz
Part # Aliases: 99CG5R
