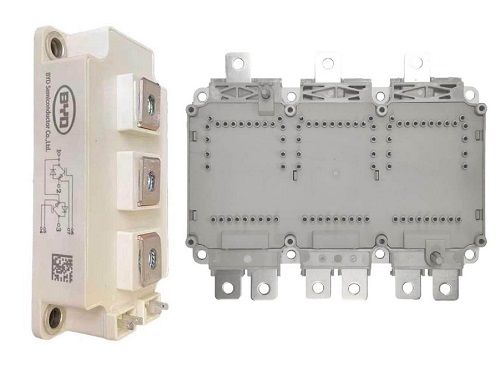

BYD Microelectronics is focusing on developing world first class power modules and providing the highest quality and efficient customized services to customers. BYD IGBT Power Modules provide low switching losses as well as high short circuit capabilities, which introducing the advanced IGBT chip/FWD and improved connections. They are able to take on a perfect performance in various applications as electric welding machines, inverters, UPS solar/wind energy power plants.

SKU: BYD IGBT Power Modules Category: Computers & Networking Tags: BYD IGBT Power Modules, Computers & Networking Brand: BYD

Description

Description

Catalog

34mm Half Bridge Module Part Number	IC(A) @T_c= 80?	VCE(sat)(V) @ T_vj=25?	E_SW(mJ) @125?	Rth(j-c) k/w	Spec. Download
V_CE = 600V Trench IGBT, Low Loss and Fast Series
BG75B06LX2R-I	75	1.5	4.1	0.35
BG100B6LX2R-I	100	1.5	7.6	0.28
V_CE = 1200V Trench IGBT, Low Loss and Fast Series
BG50B12LX2R-I	50	1.8	11.4	0.3
BG75B12LX2R-I	75	1.8	17	0.2
BG100B12LX2R-I	100	1.8	19	0.12
V_CE = 1200V Ultra Fast Series
BG50B12UX2-I	50	2.2	5	0.26	—
BG75B12UX2-I	75	2.2	8.5	0.17	—
BG100B12UX2-I	100	2.2	10.3	0.11	—

62mm Half Bridge Module Part Number	IC(A) @T_c= 80?	VCE(sat)(V) @ T_vj=25?	E_SW(mJ) @125?	Rth(j-c) k/w	Spec. Download
V_CE = 1200V Trench IGBT, Low Loss and Fast Series
BG100B12LY2R-I	100	1.8	23	0.29
BG150B12LY2R-I	150	1.8	28	0.2
BG200B12LY2R-I	200	1.8	38	0.14
BG300B12LY2R-I	300	1.8	54	0.11
BG400B12LY2R-I	400	1.8	61	0.072
V_CE = 1700V Trench IGBT, Low Loss and Fast Series
BG200B17LY2-I	200	2.0	133	0.15	—
BG300B17LY2-I	300	2.0	193	0.09	—
BG400B17LY2-I	400	2.0	242	0.075	—
BG450B17LY2-I	450	2.0	285	0.065	—

Full Bridge Module Part Number	IC(A) @T_c= 80?	VCE(sat)(V) @T_vj=25?	Ptot (W)	Rth(j-c) k/w	Spec. Download
V_CE=1200V Trench IGBT, Low Loss and Fast Series
BG50F12LP-I	50	1.8	270	0.45	—
BG75F12LP-I	75	1.8	350	0.35	—
BG100F12LP-I	100	1.8	480	0.26	—
BG150F12LP-I	150	2	700	0.18

FRD Module Part Number	VRRM (V)	IF(AV) d=0.5(A)	IFSM 10ms 25?(A)	VFM @IFM		Trr Tvj = 125?(ns)	Rth(j-c) (k/w)	Spec. Download
FRD Module Part Number	VRRM (V)	IF(AV) d=0.5(A)	IFSM 10ms 25?(A)	(V)	(A)	Trr Tvj = 125?(ns)	Rth(j-c) (k/w)	Spec. Download
BD100N04FZ	400	2×100	1850	1.05	100	140	0.15
BD150N04FZ	400	2×150	2800	1.1	150	150	0.13
BD100N06FZ	600	2×100	2000	1.2	100	180	0.1
BD150N06FZ	600	2×150	2800	1.3	150	204	0.08
