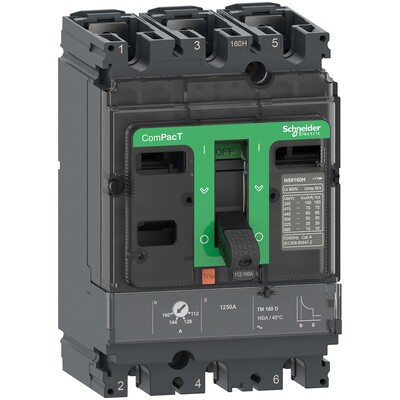

C10F3TM063 Square-D Schneider Electric Circuit breaker, ComPacT NSX100F, 36kA/415VAC, 3 poles, TMD trip unit 63A Toggle Chassis Mount
Moulded Case Circuit Breaker (MCCB) – ComPact NSX 100F TMD 3P3D 63A 415Vac 36kA – Schneider Electric / Merlin Gerin – 3-poles (3P3d) – Rated current 63A – Rated voltage 415Vac – Short circuit breaking capacity (Icu) 36kA (380Vac/400Vac/415Vac) – Thermal-Magnetic (adjustable) (TMD) trip unit – Compression lugs or Copper bars on both load and line sides – replaces LV429632
Features
Schneider Electric green signature style for the entire ComPacT range
Estimated 40% reduction of wiring time for panel builders
Experience easier installation thanks to a new ergonomic front-plate design
Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
Ergonomic new toggle for easier breaker manual operation
Brand: Square D (Schneider Electric)
Part Number # : C10F3TM063
SKU #: 2459038
Actuator Type: Toggle
Amperage Rating: 63 A
Dimensions: 6.3 in H x 4.1 in W x 3.4 in D
Frequency Rating: 50/60 Hz
Interrupt Rating: 36 kA
Number of Poles: 3
Temperature Rating (Degrees F): -13 to 158 deg F, 104 deg F
Trip Type: Thermal/Magnetic
Mounting type: Backplate
Manufacturer Name: Schneider Electric
UNSPSC: 39121601
UPC: 03606481997043
Benefits
ComPacT NSX
Moulded-Case Circuit Breakers and Switch-Disconnectors from 16 to 630A – up to 690V
Meet the new face of connected breaker technology.
The Schneider Electric ComPacT range is built on 70 years of expertise and leadership in industrial circuit breakers.
Today Schneider Electric is launching its new generation of ComPacT molded case circuit breakers.
The comprehensive‚ optimized ComPacT range covers your protection and has been redesigned with a superior customer experience in mind.
The range combines wireless intelligent metering and monitoring‚ along with advanced protective functions
This range can be connected to Schneider Electric’s open‚ interoperable‚ IoT-enabled EcoStruxureTM Power architecture.
Through this platform we deliver enhanced value in terms of safety‚ reliability‚ efficiency‚ sustainability‚ and connectivity.
We leverage technologies in IoT‚ mobility‚ sensing‚ cloud‚ analytics‚ and cybersecurity to deliver Innovation at Every Level. This includes connected products‚ edge control‚ apps‚ analytics and services.
ComPacT Design
New Signature Design
– Schneider Electric green signature style for the entire ComPacT range
– Estimated 40% reduction of wiring time for panel builders
– Experience easier installation thanks to a new ergonomic front-plate design
– Gain the confidence that all auxiliaries are on the right spot‚ and simply double check that you have the right coil rating
– Ergonomic new toggle for easier breaker manual operation
Wireless Breaker Status
Wireless technology accelerates overall wiring timeː Status communication is done very simply and commissioned wirelessly. No cable connection is required‚ with a simple clip‚ the auxiliary is installed and ready for commissioning.
In case of a change on your breaker’s status‚ you get two steps of indicationː
– Remote indication (App/Software)ː Your ComPacT circuit breaker will send you an immediate notification via your Edge Control app/software.
– Local indication (Blinking LED)ː Gain time by identifying which breaker is concerned in your overall electrical architecture
Smallest size in the range
– ComPacT NSXm is the smallest frame size in the range‚ incorporating new features and innovations
– Gain up to 40% in space when using with integrated earth leakage protection
– Reduce up to 40% mounting and cabling time with EverLink connectors‚ built-in DIN rail and spring-type auxiliaries
– Select‚ configure and commission with ease‚ thanks to Schneider Electric online toolsː EcoStruxure Customer Lifecycle Software‚ such as EcoStruxure Power Design – Ecodial
Integrated earth leakage protection
– Easy to integrate into a row that does not have earth leakage protection
– Simple to use‚ reliable‚ and now comes in the same frame size‚ and for the same panel support
– Gain up to 40% in space when using with integrated earth leakage protection into the MicroLogic Vigitrip units
– Standard protection of distribution cables
– Part of the EcoStruxure Power architecture‚ with digital communication capability and data management (settings‚ measurement‚ pre-alarms‚ trip & test history)
Roto-activeTM breaking technology
EverLink connectors – for enduring protection
While the ComPacT NSXm is the smallest breaker in the ComPacT range‚ it nonetheless features all the innovations from previous generations‚ and notably includes roto-active breaking technology.
Schneider Electric was the first to introduce this technology – an innovation in which the effective fault current limitation benefits the entire installation‚ particularly its cables.
Reduce the effects of short circuits to extend your installation lifeː
– Increase life duration of all items downstream of the electrical network
– Provide both outstanding selectivity and cascading
