Description

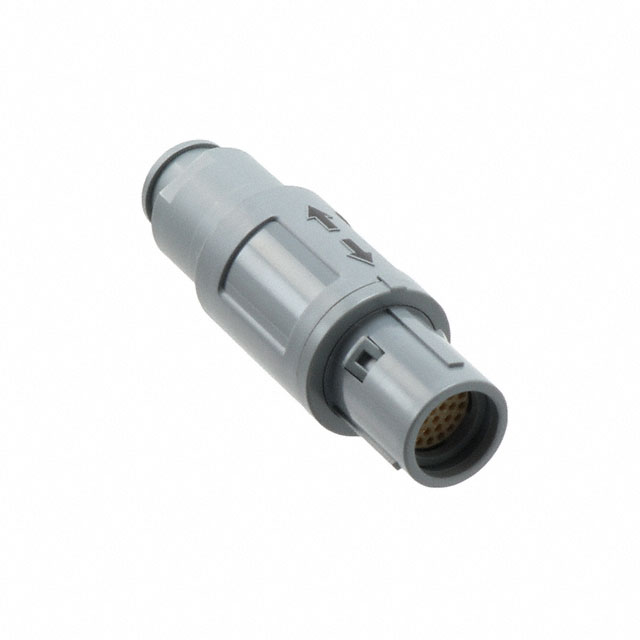

CAH.M34.SLL.C72GZ Lemo Push-Pull, Detent Lock Plastic Connector Plug, Female Sockets 34 Position 1.5A 0.209″ ~ 0.283″ (5.30mm ~ 7.20mm) IP50 – Dust Protected Free Hanging (In-Line) Unshielded – Backshell Solder Cup
Color: Gray
Shielding: Unshielded
Type: Circular Connector Assemblies
Primary Material: Plastic
Shell Material: Plastic
Shell Finish Material: Polyetherimide (PEI)
Mating Contact Finish: Gold
Ingress Protection:IP50 – Dust Protected
Connector Type: Plug, Female Sockets
Number of Positions: 34
Shell Size – Insert: 34
Orientation: H
Current Rating: 1.5A (Amps)
Termination: Solder Cup
Mounting Feature:
Mounting Type: Free Hanging (In-Line)
Fastening Type: Push-Pull, Detent Lock
Manufacturer Part Number: CAH.M34.SLL.C72GZ
Manufacturer: Lemo
Datasheet: Datasheet
