Description

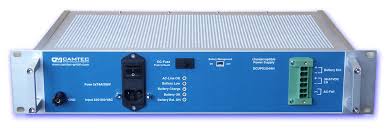

CAMTEC DCUPS2U DC UPS / modular 12 – 48 V, 114 W | DCUPS2U. Off-line UPS / DC / industrial / modular
PureWave UPS System protects power-sensitive equipment from the detrimental effects of disturbances such as voltage sags, surges, transients, momentary disruptions, and complete outages.
- Unbreakable DC Power Supply (UPS), Subrack, 2U 84HP D=280mm
- Integrated Battery Pack
- 2 internal, independent Power Supplies for Continuous Operation and Battery Charging
- Zero voltage drop at powerswitch between mains supply and battery supply
- AC-Fail, DC-Fail Charger und Main Power Supply, O-Ring
| Model | DCUPS2U | ||
| Power | 114W | ||
| Master-slave operation | Slave-Units for modular capacity expansion available | ||
| Master Vout | 12V | 24V | 48V |
| Continous Current | 8A | 4A | 2A |
| Backup Capacity | 16Ah | 8Ah | 4Ah |
| ’19”-Subframe’ | 2U 84HP 280mm | ||
| Mains Input | 184… 265Vac (230Vac) 47-63Hz | ||
| Mains Input Connector | Inlet connector male with Lock | ||
| Monitoring | Relay, piezo-sound interval | ||
| AC Power Fail | yes | ||
| Battery Low Voltage | Signaling for relay | ||
| Battery O.K. | LED & signal | ||
| Battery Charger | Integrated | ||
| Monitoring Battery Charger | Relay, Sub-D | ||
| Power Supply | Active during mains operation for load | ||
| Monitoring Power Supply | Relay, Sub-D | ||
| Short Circuit Protection DC for Battery | Thermic fuse, manual resettable | ||
| Cooling | Natural convection | ||
| Efficiency | >90% continuous operation | ||
| Operating Temperature | +10°C… +40°C, IEC60068-2-1 | ||
| Connection Output | Phoenix Power Combicon, screw-lock | ||
| Battery Type | Built-in, type Panasonic LCR124R5P for cycle operation | ||
| GND-Type DC | Plus connected GND | ||
| PE Connection |
Additional for front screw terminals |
||
Manufacturer:Camtec
Datasheet: DCUPS2U4AH-Technical information
