Description

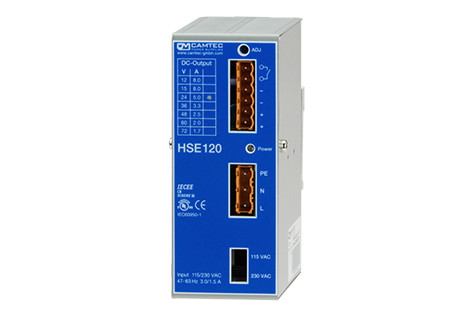

HSE01201.110T
DIN-Rail 1phase Fixed Output TS35mm DIN EN 50022
| Model | HSE01201 | ||||||
| Power | 120W | ||||||
| Nominal AC Input | 115/230Vac select | ||||||
| Input Range AC | 90..115Vac/184..265Vac | ||||||
| Input Range DC | 250… 375Vdc | ||||||
| Input Frequency | 47… 63Hz | ||||||
| Hold-Up Time | 30ms | ||||||
| Inrush Current Protection | NTC < 16A | ||||||
| Autostart | Soft start | ||||||
| Output Voltage | 12V | 24V | 36V | 48V | 60V | 72V | 110V |
| Adjust Range Vout | 11,4..13,2V | 22,5… 28,5V | 34,2V… 39,6V | 45,6… 42,8V | 57… 66V | 68… 86V | 100… 120V |
| Ripple & Noise mVpp | 50mV | 65mV | 65mV | 100mV | 120mV | 120mV | 200mV |
| Nominal Output Current | 8A | 5A | 3,3A | 2,5A | 2A | 1,7A | 1,1A |
| Power Boost <=60°C/60s | 9,6A | 6A | 4A | 3A | 2,4A | 2A | 1,3A |
| Stability at Load Switch | ±0,5% | ||||||
| Transient Time | < 1ms | ||||||
| Efficiency | 91% | ||||||
| Basic load | Idling-proof | ||||||
| Short Circuit Protection | Continuous | ||||||
| Ambient Operation Temperature | -20°C… +70°C | ||||||
| Cooling | Natural convection | ||||||
| Temperature Monitoring | Upon request | ||||||
| Dimensions (WxHxD) | 50x124x96mm | ||||||
| IP-Range | IP20 | ||||||
| Safety Norms | CSA UL CE according to IEC60950-1 | ||||||
| Safety IEC | EN60950-1 EN50178 EN60204-1 | ||||||
| Safety Class 1(A) | VDE0100 VDE0805 | ||||||
| Input to Output Isolation | 3000Vac | ||||||
| Climatic Class, Humidity | 3k3, 90% non condensing | ||||||
| EMI | EN55022B EN61000-3-2A | ||||||
| EMS | EN61000-6-2,3 | ||||||
| MTBF IEC61709 | 600000h | ||||||
| Power Good Relay | galvan. insulated 60Vdc | ||||||
| Ordering options | Protective coating | ||||||
Manufacturer Part Number: HSE01201.110T
Manufacturer: Camtec
