Description

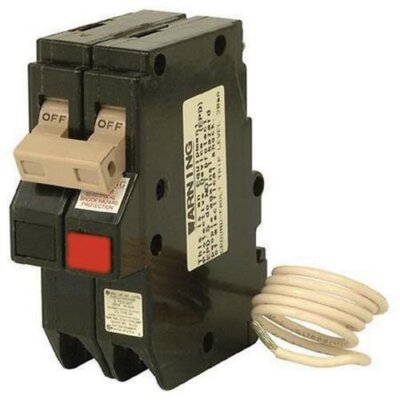

CH250GFT Cutler-Hammer Eaton CH GFCI circuit breaker,Ground fault circuit breaker,50 A,10 kAIC,Two-pole,120/240 V,CH,Common,Plug-on,#14-4 AWG,Ground fault self test,GFI
Breaker, Ground Fault Self-Test; Mounting: Plug-in; Poles: 2; Amps: 50A; Voltage: 120/240V; Rating – kA IR: 10kAIC; HxWxD: 4.5 x 2.75 x 2 in.; Manufacturer Series: CH
Specification
Interrupt Rating
10 kAIC
Mounting Type
Plug-On
Number Of Poles
2
Minimum Order Qty
1
Order Interval
1
Amperage Rating
50 A
Catalog ID
C-HCH250GFT
Dimensions
4-1/2 in L x 2-3/4 in W x 2 in H
Enclosure Type
NEMA 1/3R
Temperature Rating
60 to 75 deg C
Trip Type
Common
Type
Ground Fault
Voltage Rating
120/240 VAC
Wire Size
14 to 6 AWG
Standard & Approvals
Meets Federal Spec Classification W-C375
Loadcenters and Circuit Breakers
