Description

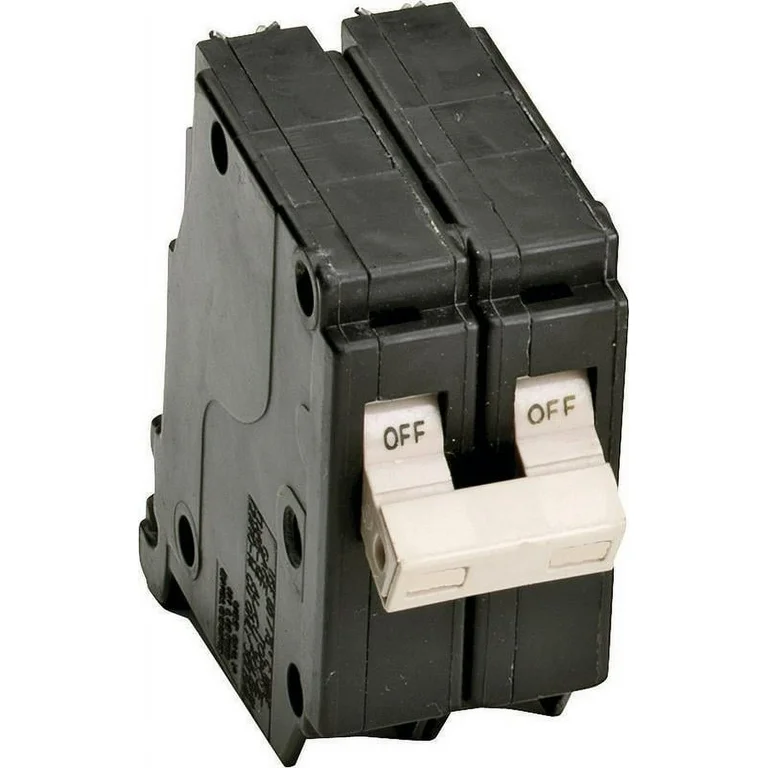

CHF240 Cutler-Hammer Eaton CH Thermal magnetic circuit breaker, Type CHF 3/4-Inch standard circuit breaker, 40 A, 10 kAIC, Two-pole, 120/240V, CHF, Trip flag, common breaker trip, (1) #14-8 AWG, (2) #14-10 AWG Cu/Al, CHF, Type CH Loadcenters
Eaton has enhanced its premium Type CH residential circuit breakers, making the best even better. In addition to the industry exclusive “Trip to OFF” and simple 1-Step Reset feature, Eaton has added a trip flag to visibly indicate breaker status. Along with Tri-Drive screws and new markings that highlight ratings and the Eaton brand.
Highlights
Primary function of a circuit breaker is to protect the wire from overheating (overload) and fault currents (short circuit)
Amperage rating: 40 Amp
Double pole breaker
Flag visually confirms tripped status, making it easy for the homeowner to identify
For use in type CH load centers only
Interrupt rating – 10 kAIC
Voltage rating is 120/240-Volt
#10-1/0 AWG Cu/Al 60 degree C or 75 degree C
HACR rated
Specs:
Brand EATON
Actuator Type Toggle Handle
Amperage Rating 40 A
Connection Type Box Lug
Dimensions3 in L x 3/4 in W x 3 in H
Interrupt Rating 10 kAIC
Manufacturer Name Eaton
Mounting Type Plug-On
Number of Poles 2
Phase1, 1 ph
Temperature Rating 60 to 75 deg C
Trip Type Common/Mechanical Trip Flag
Type CHF Standard
Voltage Rating 120/240 V AC, 120/240 VAC
Wire Size 10 to 1/0 AWG Copper/Aluminum
