Current Transducer, CKSR Series, 25A, -85A to 85A, 0.8 %, Voltage Output, 4.75 Vdc to 5.25 Vdc

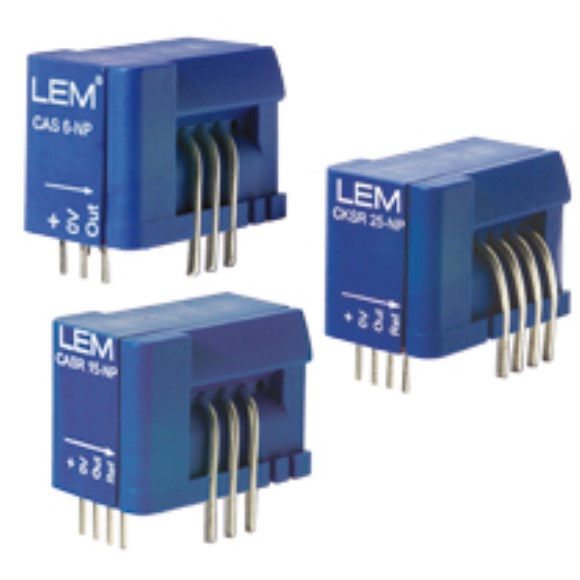

The CKSR 25-NP is a closed loop (compensated) multi-range Current Transducer with isolated plastic case construction. The CKSR series current transducer features as an electronic measurement of current DC, AC, pulsed with galvanic isolation between the primary and the secondary circuit. It is used for AC variable speed and servo motor drives, static converters for DC motor drives, battery supplies, uninterruptible power supplies (UPS), switched mode power supplies (SMPS), power supplies for welding and solar inverters.
This range has been designed to provide current measurements from 6 to 50Arms in a very compact size. Based on the Closed Loop Fluxgate technology for better accuracy.
Single supply
Compact design for PCB mounting
Very low temperature coefficient of offset
Very good dv/dt immunity
Higher creepage/clearance distances
Reduced height
UL94V-0 Flammability rating
Applications
Sensing & Instrumentation, Motor Drive & Control, Power Management, Industrial
Current Ratio25:1
Sensor TechnologyClosed Loop
Supply Voltage5.25 V
Input Current25A
Overall Height16.5mm
Overall Width21.91mm
Overall Depth13.4mm
Minimum Temperature-40C
Maximum Temperature+105C
SeriesCKSR
Mounting TypePCB Mount
Manufacturer:Electronic Components
Datasheet:LEM-CKSR_6-NP.pdf
