Description

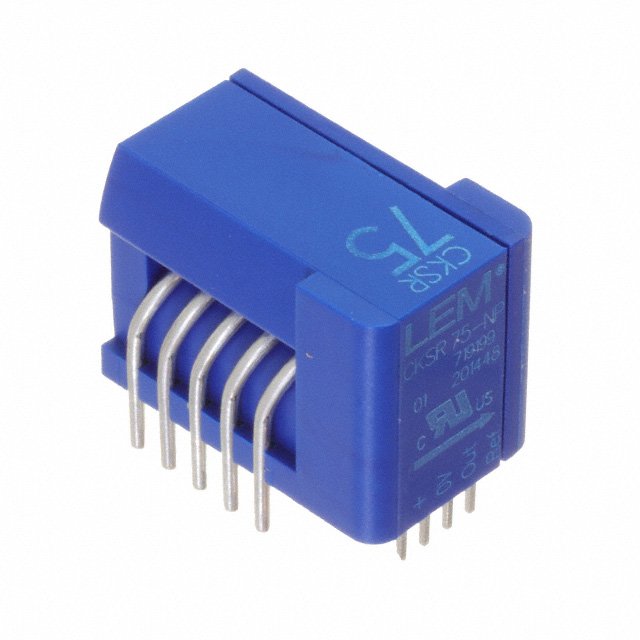

CKSR 75-NP LEM Bidirectional Flux Gate, Closed Loop AC/DC Current Sensor 4.75 ~ 5.25V 20mA 12.5mV/A ±0.8% 0.3µs Ratiometric, Voltage Module Through Hole
Sensor Type: Flux Gate, Closed Loop
For Measuring: AC/DC
Current – Sensing: 75A
Accuracy: ±0.8%
Sensitivity:Ratiometric, Voltage
Supply Current (Max): 20mA
Supply Voltage: 4.75 ~ 5.25V
Response Time: 0.3µs
Polarization: Bidirectional
Number of Channels: 1
Frequency: 300kHz
Linearity: ±1%
Package / Case: Module
Mounting Type: Through Hole
Manufacturer Part Number: CKSR 75-NP
Manufacturer: LEM USA Inc.
Datasheet: cksr_75-np.pdf
