Description

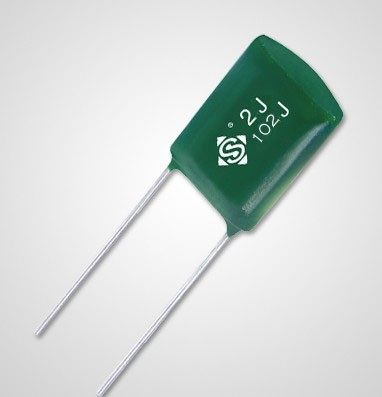

CL11 polyester capacitor, Metallized Polyester Film Capacitor PEI/CL11are non-inductively wound or stacked with metallized polyester film as dielectric/electrode with copper-clad steel leads and epoxy resin coating.
Features:
Polyester film/foil, inductively wound construction.
Dissipation factor is small because the leads are welded directly on the foil.
Epoxy resin vacuum-dipped
Typical Applications:
Widely used in DC and pulsating circuits of radio, TV sets, ballast, energy-saving lamps, LED converter , and various electronic equipments, like splitter box.
Specification
Capacitance 223PF/22000PF
Voltage 100V
Tolerance +/-5% J
Pitch P5mm
Place of OriginGuangdong, China
Brand NameSTE, Cheng Cheng Electronics
Model Number CL112A223J
Type Polyester Film Capacitor
Application General Purpose
Package Type Through Hole
Capacitance 223PF/22000PF
Rated Voltage 100V
Manufacturer:Electronic Components
Datasheet:CL11 2A223J.pdf
