Description

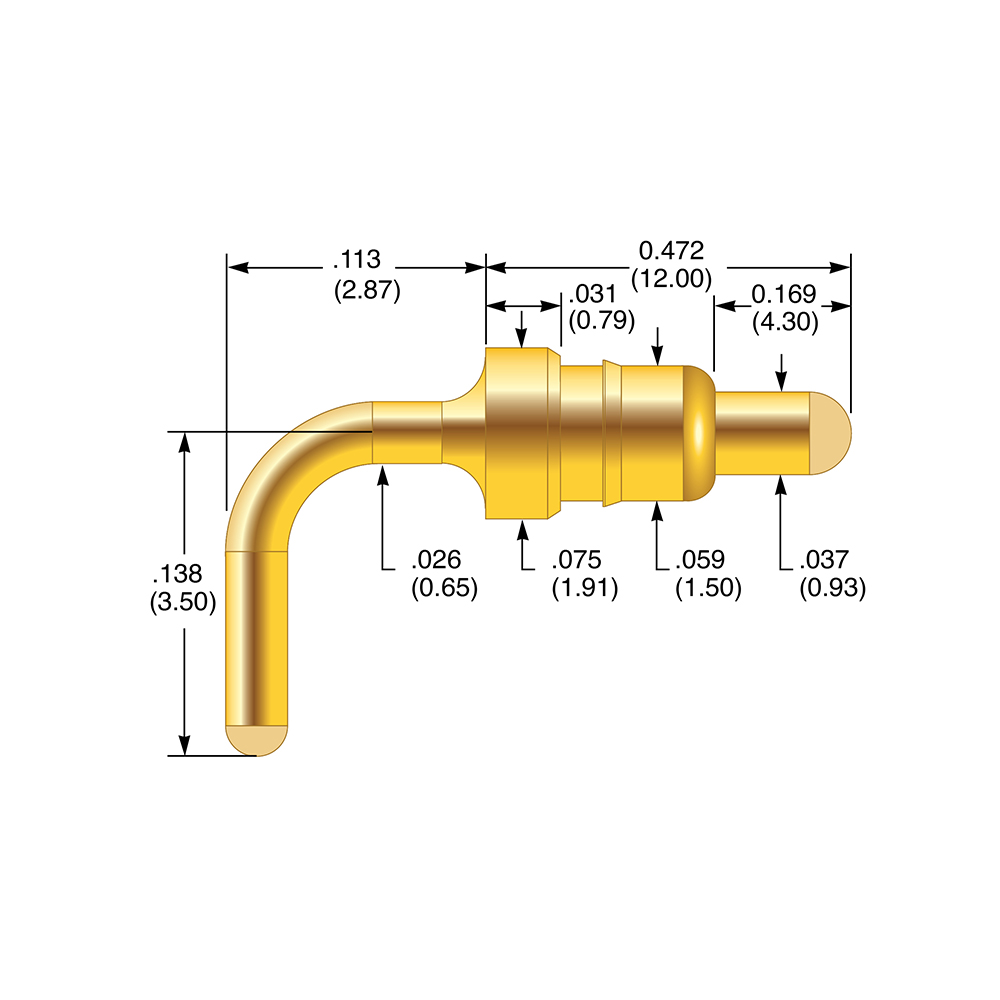

The CP-2 family includes battery probes in 4 different sizes
Electrical Current Rating (Amps): 5
Average Probe Resistance (mOhm): 50
Materials & Finishes Barrel Material: Brass, Gold plated
Plunger Material: BeCu, Gold plated
Spring Material
Type: Standard Material: Stainless Steel
Mechanical Test Center (mil): 75
Test Center (mm): 1.91
Full Travel (mil): 128
Full Travel (mm): 3.25
Recommended Travel (mil): 118.1
Recommended Travel (mm): 3.00
Overall Length (mil): 472
Overall Length (mm): 12.00
Overall Length Remark: Overall length does not include tail.
Thermal Min Operating Temp (C): -55
Max Operating Temp (C): 155
ECT is the world’s leading manufacturer of POGO ® contact probes for a wide range of applications and bare and loaded printed circuit board testing.
Manufacturer:Electronic Components
Datasheet:ect-battery-probes-2017.pdf
