Description

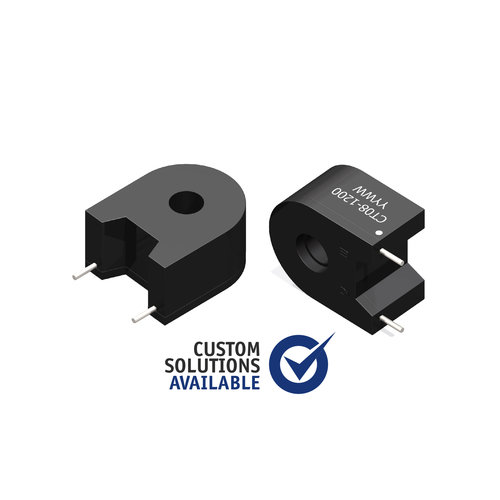

CT08-1200 ICE Components TOMBSTONE CURRENT SENSE TRANSFORMER^ Radial RoHS
Specifications
Manufacturer: ICE Components
Product Category: Current Transformers
RoHS: Details
Mounting Style: Through Hole
Inductance: 10 mH
Current Rating: 50 A
Turns Ratio: 1:1200
Secondary Resistance: 40 Ohms
Termination Style: Radial
Length: 16.8 mm
Width: 11.2 mm
Height: 20.1 mm
Frequency Range: 47 Hz to 5 kHz
Core Size: 5 mm
Packaging: Tray
Series: CT08
Brand: ICE Components
Product Type: Current Transformers
Factory Pack Quantity: 66
Subcategory: Transformers
Voltage Time – Et: 3.7 kV us
For the past 33 years, ICE Components has been a leading supplier of advanced power solutions to companies in the United States and abroad. ICE Components strives to deliver innovative and cost effective design solutions, meanwhile providing best in class support throughout the product acquisition cycle.
ICE Components is a company founded by engineers for engineers. ICE Components understands the complexities of the development process and the abbreviated timelines in which you must deliver. ICE Components offers one of the broadest lines of standard and custom magnetics for advanced power applications. ICE Components’ goal is to be a one-stop shop for today’s time pressed engineers by providing a range of choices within each product category.
Manufacturer:Electronic Components
Datasheet:Others/CT08.pdf
