Description
ELECTRICAL PERFORMANCE

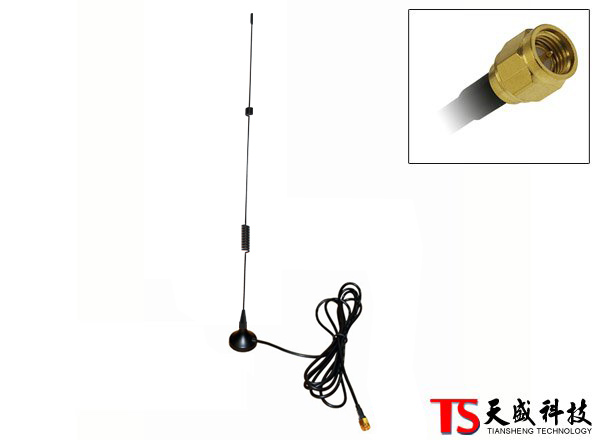

Model Model CZ4GTS003
Frequency range 700-2700MHz
Bandwidth Bandwidth 2000-MHz
Gain Gain 5dBi
Voltage standing wave ratio VSWR =1.5
Polarization Vertical vertical
Maximum merit rate max power 50-W
Input Impedance Nominal Impedance 50O
Mechanical Parameters
Connector Type Connector SMA seat or customer specified SMA female or customized
Antenna Dimension 30 310-mm
Wire Wire RG174 female or localization
Fixed form Magnetic Magnetism
Manufacturer Part Number: CZ4GTS003
Manufacturer: Electronic Components
