Description

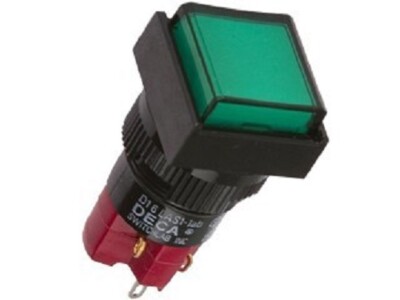

The D16-LAS1-1AB is a single-pole double-throw (SPDT) 16mm latching Pushbutton Switch with solder terminal, square head and 1NO + 1NC contacts. The 16 series switch has high-grade temperature thermoplastic body. The contact is made from soldering type-silver is standard and socket type-pin with golden plating. Contact housing is moulded in electrical high-grade thermosetting plastic. Each contact block has one double break snap action switching mechanism.
3mm Operating travel
>2 million operations Mechanical lifetime
Applications
Industrial
DECA Pushbutton Switch D16LAS1-1ab SPST φ16mm, Square, with Lamp Alternate, lock
Switch : Alternate lock hold, ON-OFF Pushbutton Switcher, 4pins : 1a & 1b,
Electric rating : AC250V 5A, AC125V 8A, DC250V 0.2A, DC24V 6A
Lamp type : Neon Lamp, Orange(for cover=Red,Orange,Yellow,White), or Green(for cover=Green,Blue)
Lamp Voltage : AC/DC 220V or 110V
Lamp cover Color : Red, Orange, Yellow, Green, Blue, White
Indicate Lamp Size : 15.2×15.2mm, Square
Mounting Hole : 15.5~16.0mm
Body size : 38.7×18.0x18.0mm, HxLxW
Wire Termina : Soldering pins, 4 pins for Switcher, 2 pins for lamp
Switch system : each contact block has one double break, snap action switching mechanism.
Contact material : soldering type – silver is standard.
Body material : high-grade temperature thermoplastic.
Contact housing moulded in electrical high-grade thermosetting plastic.
Operating travel : 3.0 mm.
Actuating force : 2-5N depending on no. of contact block.
Mechanical lifetime : > 2 million operations.
Manufacturer:Deca Switchlab
Datasheet:Deca/D16LMR1-1AB.pdf
