Description

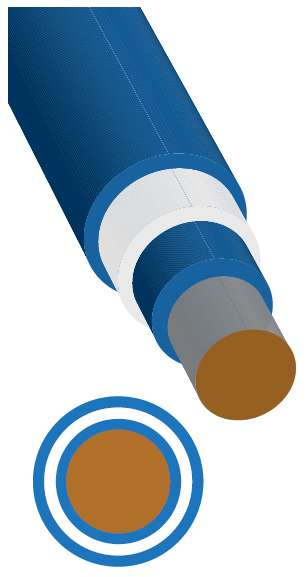

D34A01T59-1.5 Rubadue Wire TXXA01TXXX-1.5 Wire 24AWG (1) TPC DIW ETFE @ .0015″ Per Layer, Black RoHS
ETFE is a Fluoropolymer compound with excellent electrical properties, heat resistance, chemical resistance, and abrasion resistance. Commonly used in winding wires, UL AWM wires, and medical applications.
Product Information
Size Range:
UL: 18 AWG – 40 AWG
VDE: 14 AWG – 40 AWG
Not all sizes listed in chart
Conductor:
Tin Plated Copper, Solid or Stranded (ASTM B-33/ASTM B-286)
Bare Copper and other conductors available
Insulation:
DuPont Tefzel ETFE
Rating:
Temperature:155C
Voltage:
UL: 1500V for electronic equipment
UL: 707V for medical equipment
VDE: 1000V
Applications:
High power flyback converter for LED
PDA’s/Lighting
Medical/Dental/Electronic
Compliances:
UL OBJT2 File No. E206198
UL / IEC 60950-1(Ed.2), Annex U
IEC 61558-2-16, UL 60601-1 (Ed.3) ,60601(Ed.3)
VDE License Nr. 136743: Class F
System approvals: UL 1446
RXT-2 Class F
TCA Class F
Other systems available upon request
RoHS Compliant
Tensile Strength: 6500 psi
Breakdown: Approx. 7000V
Manufacturer: Rubadue Wire
MFG Part #: D34A01T59-1.5
