Description
DBLS104G RDG Taiwan Semiconductor Bridge Rectifier Single Phase Standard 1A, 400V Surface Mount DBLS RoHS
Specifications
Manufacturer:Taiwan Semiconductor
Product Category:Bridge Rectifiers
Series:DBLS10-G
Packaging:Cut Tape
Packaging:Reel
Brand:Taiwan Semiconductor
Product Type:Bridge Rectifiers
Factory Pack Quantity:1500
Subcategory:Diodes & Rectifiers
Unit Weight:1.190 lbs
MFG Part #: DBLS104G-RDG
Specifications
manufacturer Taiwan Semiconductor
Manufacturer’s name DBLS104G
Case SMD
(Max.) peak recurrent reverse voltage [V] 400
Forward voltage [V] 1,1
Reverse current [µA] 2
(Max.) average forward (rectified) current [A] 1
(Max.) RMS voltage [V] 280
FEATURES
● AEC-Q101 qualified available
● Ideal for printed circuit board
● Reliable low cost construction utilizing molded plastic technique
● High surge current capability
● UL Recognized File # E-326854
● Moisture sensitivity level: level 1, per J-STD-020
● RoHS Compliant
● Halogen-free according to IEC 61249-2-21
APPLICATIONS
● Switching mode power supply (SMPS)
● Adapters
● Lighting application
MECHANICAL DATA

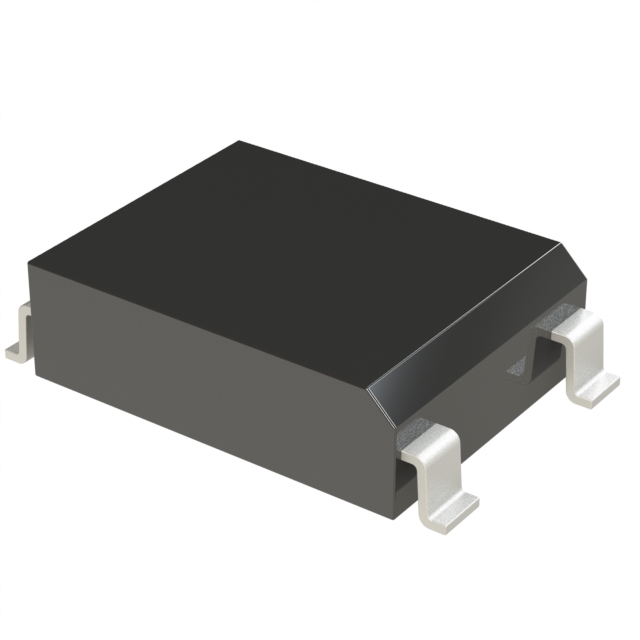

● Case: DBLS
● Molding compound meets UL 94V-0 flammability rating
● Terminal: Matte tin plated leads, solderable per J-STD-002
● Meet JESD 201 class 2 whisker test
● Polarity: As marked
● Weight: 0.360g (approximately)
Datasheet: dbls104g
