Description

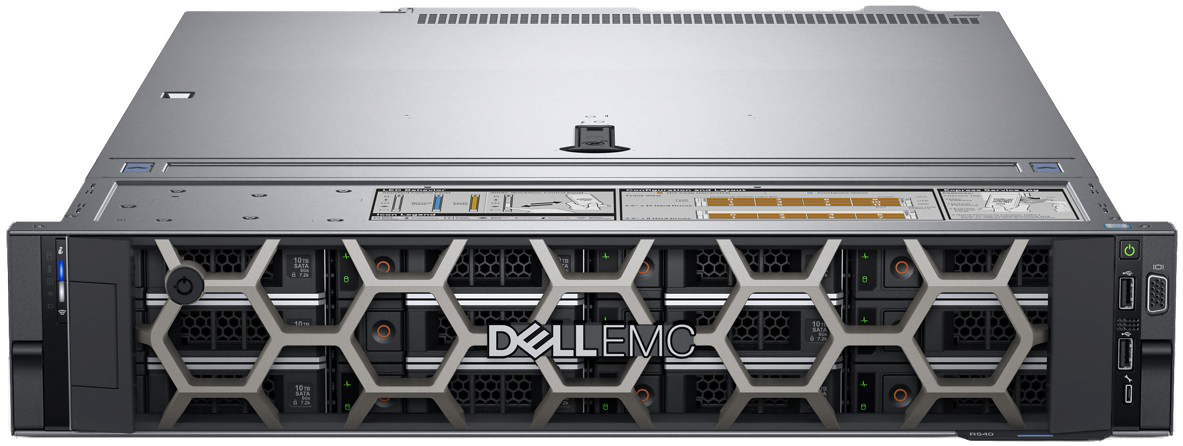

The Dell PowerEdge R540 is a 2U, dual-socket rack server designed for versatile performance across a range of workloads such as web hosting, file/print services, and light virtualization. It supports up to two Intel® Xeon® Scalable processors, up to 1TB of DDR4 memory, and provides flexible storage options with configurations supporting up to 14 3.5″ drives or 16 2.5″ drives, including support for SSDs. The R540 offers a balance of performance, storage capacity, and affordability for growing businesses and general-purpose use.
- Base:
PowerEdge R540 Server
- Processor:
Up to two 2nd Generation Intel® Xeon® Scalable processors, up to 20 cores per processor
- Memory:
16 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 1TB max
- Fans:
Up to six fans
- Storage Controllers:
Internal controllers: PERC H750, H350, H740P, H730P, H330
External controllers: HBA355e, H840, 12Gb/s Ext SAS HBA
Software RAID: S140
SAS Host Bus Adapters: HBA350i, HBA330
Boot Optimized Storage Subsystem (BOSS):HWRAID 2 x M.2 SSDs 240GB or 480GB
Internal Dual SD Module² - Drive Bays:
Front drive bays: Up to 12 x 3.5” SAS/SATA HDD max 168TB
Rear drive bays: Up to 2 x 3.5 SAS/SATA HDD max 28TB
Optional DVD-ROM, DVD+RW - Sizing:
Form Factor: 2U Rack Server
Height: 86.8mm (3.41”)
Width*: 434mm (17.08”)
Depth*: 693.81mm (27.31”)
Weight: 29.68kg (65.43lbs.)
*Dimensions do not include bezel. - Bezel:
Optional LCD or security bezel
- Embedded/At-Server:
iDRAC9
iDRAC Direct
iDRAC REST API with Redfish
Quick Sync 2 BLE/wireless module - Consoles & Mobile:
OpenManage Enterprise
OpenManage Essentials
OpenManage Mobile
OpenManage Power Center - Integrations:
OpenManage integrations: Microsoft® System Center, VMware® vCenter™, BMC Truesight, Red Hat® Ansible® Modules
- Connections:
Nagios® Core and Nagios® XI, IBM Tivoli® Netcool/OMNIbus
Micro Focus Operations Manager I - Tools:
Dell EMC Repository Manager
Dell EMC Update Package
Dell EMC System Update
Dell EMC Server Update Utility
iDRAC Service Module
OpenManage Server Administrator
OpenManage Storage Services - Power Supplies:
Platinum 495W, 750W, 1100W
Hot plug power supplies with full redundancy option - Security:
TPM 1.2/2.0, TCM 2.0 optional
Cryptographically signed firmware
Silicon Root of Trust
Secure Boot
System Lockdown (requires OpenManage Enterprise)
System Erase - I/O & Ports:
Network options: 2 x 1GbE LOM + (optional) LOM Riser 2 x 1GbE or 2 x 10GbE SFP+ or 2 x 10GbE BaseT
Front: 1 x Dedicated iDRAC Direct, 1 x USB 2.0, 1 x Video
Rear: 1 x Dedicated iDRAC, 1 x Serial, 2 x USB 3.0, 1 x Video
Optional Riser: Non-rear storage config: 1xFH/FL + 1xHH/HL (2U Right riser) slots + 3 HH/HL slots
Rear storage config: 1xHH/HL (1U Left Riser) + 1xHH/HL (1U Right risers) slot or 1xHH/HL (1U Left Riser) + 1x FH/HL (1U Right riser) - Supported Operating Systems:
Canonical® Ubuntu® Server LTS
Citrix® XenServer®
Microsoft Windows Server® LTSC with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi
PowerEdge R540 Mounting specifications
Chassis Dimensions:
Length (depth): 27.31” (693.81 mm)
Width: 17.08” (434 mm)
Height: 3.41” (86.8 mm)
Weight: 65.43 lb (29.68 kg) max
Mounting Requirements:
U height: 2U
Rack width: 19”
Mountable depth: 27”-30”
Datasheet: PowerEdge-R540-Spec-Sheet
