Description

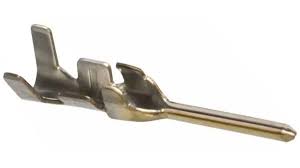

DF11-EP2428PCF Hirose Pin Contact, Crimp Terminal 24-28 AWG Tin RoHS
Specifications
Manufacturer: Hirose Electric
Product Category: Headers & Wire Housings
Product: Contacts
Pitch: 2 mm
Termination Style: Crimp
Contact Gender: Pin (Male)
Contact Plating: Tin
Series: DF11
Wire Gauge: 28 AWG to 24 AWG
Minimum Operating Temperature: – 30 C
Maximum Operating Temperature: + 85 C
Packaging: Reel
Packaging: Cut Tape
Brand: Hirose Connector
Contact Material: Phosphor Copper
Current Rating: 2 A
Product Type: Headers & Wire Housings
Reel:10000
Subcategory: Headers & Wire Housings
Voltage Rating: 250 V
Part # Aliases: 543-0615-4-00
Unit Weight: 0.001411 oz
A range of crimp contacts for use in the DF11 series 2.00mm connector housings. The crimp receptacle contacts are for use in the crimp connector housings. The crimp pin contacts are for use in the in-line plug connector housings. These crimp contacts are available in wire size ranges of 30 to 22 AWG and with gold or tin plating.
Manufacturer: Hirose Connector
MFG Part #: DF11-EP2428PCF
