Description

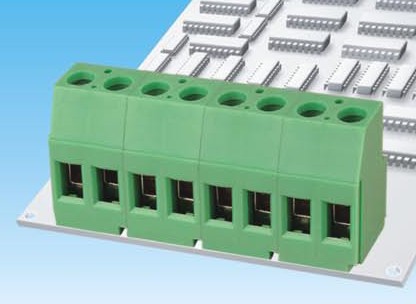

DG129-5.08-03P-14-00AH Degson GREEN PCB TERMINAL BLOCK PITCH=5.08mm, 300V 20A, 2.5mm2
Technical data
Category Screw terminal
Features + lifter
CS 5.08 mm
No. of rows 1
Pins per row 3
Number of pins 3
Series DG127
Min. stripping length 7 mm
Stripping length (max.) 7 mm
Connection Screw terminal, Print
Cross section (flexible) (min.) 0.12 mm2
Cross section (inflexible) (min.) 0.12 mm2
Cross section (flexible) (max.) 3.31 mm2
Cross section (inflexible) (max.) 3.31 mm2
AWG (min.) 26
AWG max. 12
Connector orientation Parallel (to the PCB)
Contact material Brass silver plated
Enclosure material Polyamide 6.6
Colour Green
Wire protection Yes
Actuation direction Perpendicular (to the PCB)
Nominal current 20 A
Manufacturer part # DG129-5.08-03P-14-00AH
Length 10.50 mm
Height 21.95 mm
Content 1 pc(s)
Weight 6.80 g
Type DG129-5.08-03P-14-00AH
Width 15.24 mm
Nominal voltage 300 V
Manufacturer:Degson
Datasheet:Others/degson-2EDGKA-5.08.pdf
