Description

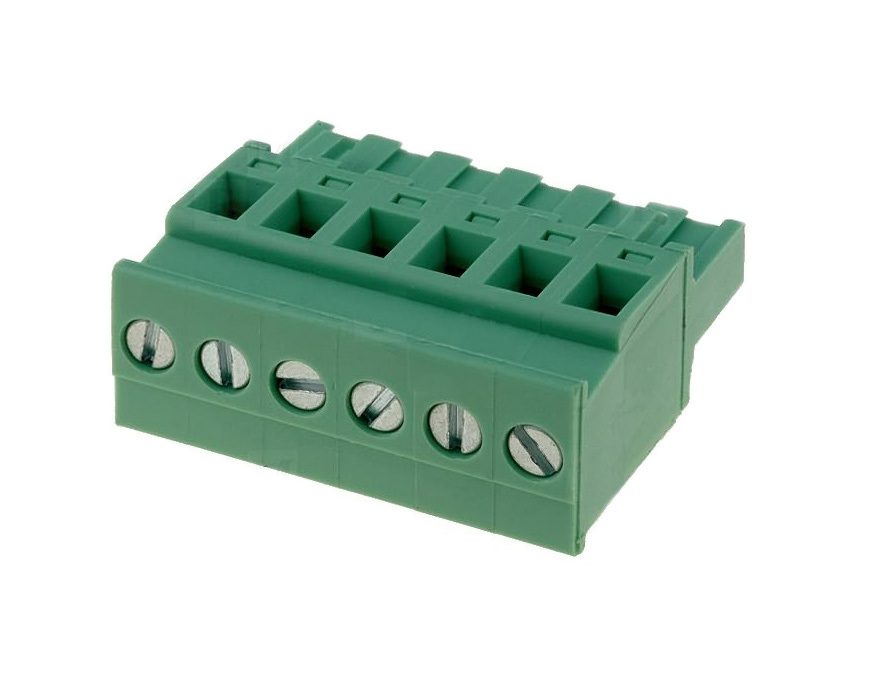

Degson DG129-5.08-10P-14-00AH Pluggable terminal block; plug; female; angled; 5.08mm; on cable
Technical data
Category Screw terminal
Features + lifter
CS 5.08 mm
No. of rows 1
Pins per row 10
Number of pins 10
Series DG129
Connection Screw terminal, Print
AWG (min.) 26
Connector orientation Parallel (to the PCB)
AWG max. 12
Contact material Brass tin plated
Enclosure material Polyamide 6.6
Colour Green
Wire protection Yes
Actuation direction Perpendicular (to the PCB)
Type DG129-5.08-02P-14-00AH
Manufacturer part # DG129-5.08-10P-14-00AH
Nominal voltage 300 V
Nominal current 20 A
Manufacturer:Degson
Datasheet:Others/DG129-5.08.pdf
