Description

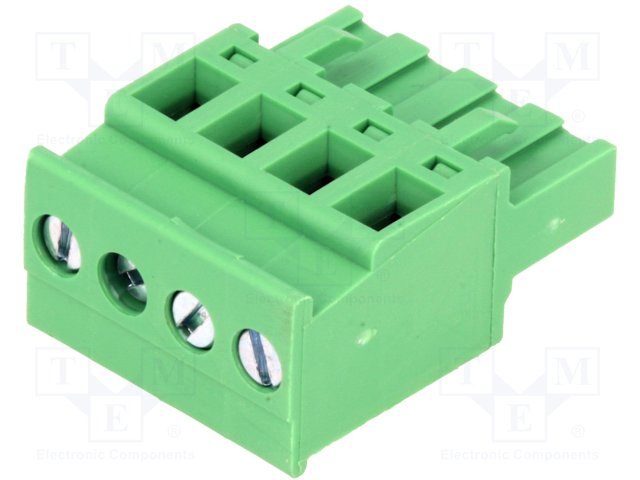

DG237-5.08-04P-11-00AH Degson Electronics Plug gable terminal block 5.08mm; 4 Positions
Specification
Multimedia
Manufacturer:DEGSON ELECTRONICS
Connector type:pluggable terminal block
Contacts pitch:5.08mm
Number of ways:4
Spatial orientation:angled
Connector:plug
Kind of connector:female
Mechanical mounting:for cable
Electrical mounting:cage clamp, screw terminal
Wire cross section:2.5mm2
Wire size:28…12AWG
Type of pin configuration:1×4
Colour:green
Locking system:latch
Rated voltage:320V
Rated current:10A
Body material:PA66
Flammability rating:UL94V-0
Conform to the norm:CE, UL, VDE
Operating temperature:-40…105C
Contact material:phosphor bronze
Number of terminals:4
Manufacturer:Degson
Datasheet:2EDGKA-5.08.pdf
