Description

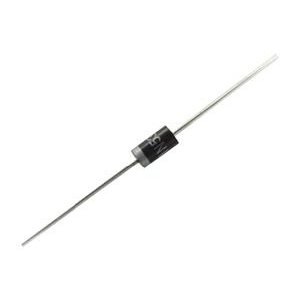

The 1N5355B is a Zener Single Diode with cathode band polarity. The diode features Zener voltage range of 3.3 to 200V.
DIODE-INC – DIODE 1N5355B ZENER 5 WATT ZENER REGULATOR DIODES 3.3-200 VOLTS
Part Specification:
- Number of Elements : Single
- Type : Voltage Regulator
- Package Type : T-18
- Zener Voltage (Typ) : 18V
- Zener Test Current : 65mA
- Maximum Voltage Regulation : 400mV
- Power Dissipation : 1.47W
- Knee Impedance : 2.5Ohm
- Operating Temperature Classification : Military
- Rev Curr : 500nA
- Zener Current (Max) : 264mA
- Voltage Tolerance : 5
- Mounting : Through Hole
- Pin Count : 2
- Operating Temp Range : -65C to 150C
Manufacturer Part Number: 1N5355B
Diodes Inc.
