Description

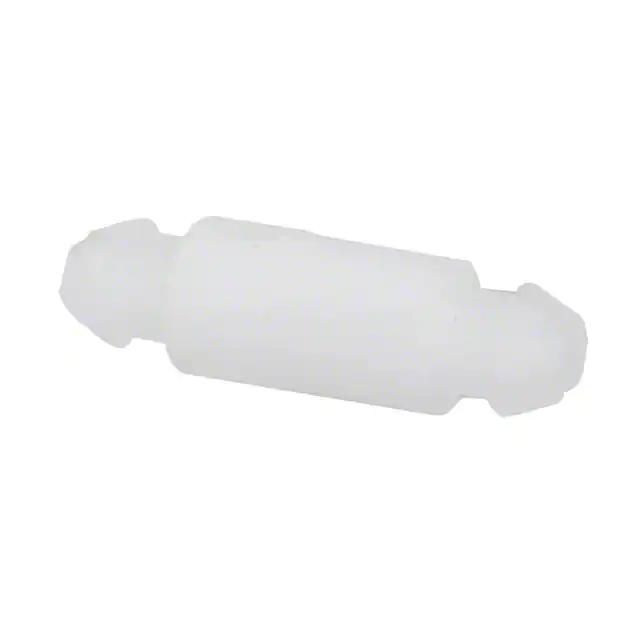

DLMSP-20-01 Richco / Essentra Components PCB Supports, Locking Two-Prong PCB Support – Body Diameter – 4.6 mm | 0.180 in ; Spacer Length 31.8 mm | 1.250 in ; Operating Temperature Range -40 – 110 C | -40 – 230F
Mini Support Posts feature a snap-in lock feature to support quick and easy fitting, providing good support and positioning of the circuit board.
Specifications
Imperial Metric
Body Diameter: 0.180 in
Hole Diameter A: 0.152 in
Hole Diameter B: 0.152 in
Maximum Operating Temperature: 230 F
Maximum Panel Thickness A: 0.062 in
Maximum Panel Thickness B: 0.062 in
Minimum Operating Temperature: -40 F
Operating Temperature Range: -40 – 230 F
Spacer Length: 1.250 in
Color: Natural
Full Material: Nylon 6/6
Hole A Fix Type: Locking Two Prong
Hole B Fix Type: Locking Two Prong
Material: Nylon
Material Flammability Standard: UL94 V-2
Style: 1
Manufacturer:Richco
Datasheet:DLMSP_TD.pdf
