Description
DMP4047SSD-13 Diodes Incorporated MOSFET Dual P-Ch Channel Enhancement Mode -40V ENH Min RDSon -20VGss Surface Mount 8 Pin SO Lead free / RoHS: Compliant
Specifications
Manufacturer:Diodes Incorporated
Product Category:MOSFET
Technology:Si
Mounting Style:SMD/SMT

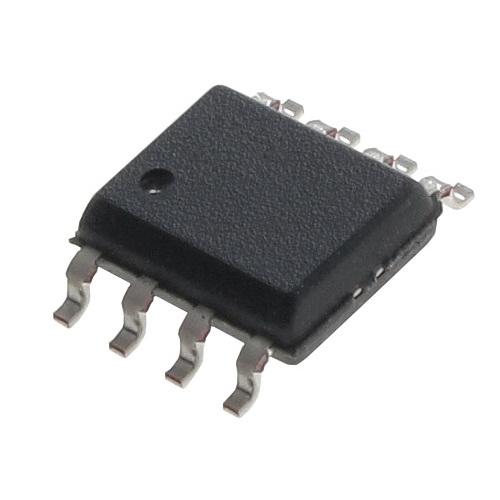

Package / Case:SO-8
Transistor Polarity:P-Channel
Number of Channels:2 Channel
Vds – Drain-Source Breakdown Voltage:40 V
Id – Continuous Drain Current:6.5 A
Rds On – Drain-Source Resistance:45 mOhms
Vgs – Gate-Source Voltage:- 20 V, + 20 V
Vgs th – Gate-Source Threshold Voltage:1 V
Qg – Gate Charge:10.6 nC
Minimum Operating Temperature:- 55 C
Maximum Operating Temperature:+ 150 C
Pd – Power Dissipation:1.8 W
Channel Mode:Enhancement
Packaging:Cut Tape
Packaging:Reel
Configuration:Dual
Series:DMP4047
Transistor Type:2 P-Channel
Brand:Diodes Incorporated
Fall Time:25.5 ns
Product Type:MOSFET
Rise Time:19.6 ns
Factory Pack Quantity:2500
Subcategory:MOSFETs
Typical Turn-Off Delay Time:34.9 ns
Typical Turn-On Delay Time:8.7 ns
Unit Weight:0.002610 oz
Manufacturer: Diodes Inc.
MFG Part #: DMP4047SSD-13
