Description
DS1624S+ Maxim Integrated Board Mount Temperature Sensors Digital Thermometer and Memory -55 to +125C +-0.5C Serial-2 Wire, 8-Pin SOIC RoHS
The DS1624 consists of two separate functional units: 1) a 256-byte nonvolatile E2 memory and 2) a direct-to-digital temperature sensor. The nonvolatile memory is made up of 256 bytes of E2 memory. This memory can be used to store any type of information the user wishes. These memory locations are accessed through the 2-wire serial bus. The direct-to-digital temperature sensor allows the DS1624 to measure the ambient temperature and report the temperature in a 12-bit word with 0.0625C resolution. The temperature sensor and its related registers are accessed through the 2-wire serial interface.
Specifications
Manufacturer:Maxim Integrated
Product Category:Board Mount Temperature Sensors
Output Type:Digital
Configuration:Local
Accuracy:+/- 0.5 C
Supply Voltage – Min:2.7 V
Supply Voltage – Max:5.5 V
Interface Type:2-Wire, I2C, SMBus
Resolution:13 bit
Minimum Operating Temperature:- 55 C
Maximum Operating Temperature:+ 125 C
Shutdown:No Shutdown
Mounting Style:SMD/SMT

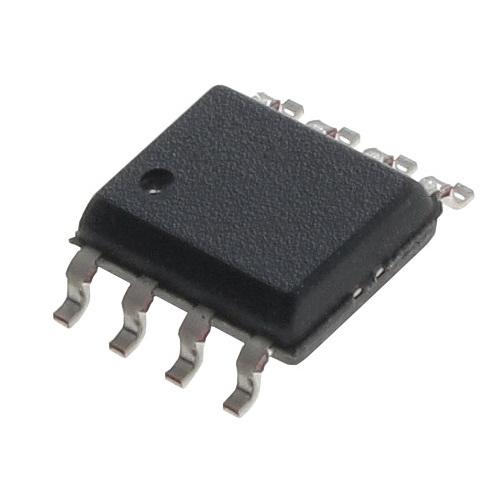

Package / Case:SOIC-8
Packaging:Tube
Product:Sensor with EEPROM
Series:DS1624
Brand:Maxim Integrated
Operating Supply Current:1 mA
Product Type:Temperature Sensors
Factory Pack Quantity:88
Subcategory:Sensors
Part # Aliases:DS1624S 90-1624S+000
Unit Weight:0.004762 oz
Manufacturer:Maxim
Datasheet:Maxim/MAXM-S-A0001107536-1.pdf
