DS16C2 2-4 ITW Switches DIL 2POLE, 4WAY 30V 250MA

Please call 800-717-6475 to check current stock and pricing.

DS16C-04-02-STD ITW ERG COMPONENTS SWITCH SLIDE QPDT 30V 250MA 9.3MM 2P

SKU: DS16C0402STD Category: Tag: Brand:

Description

ITW ERG COMPONENTS DS16C-04-02-STD SWITCH SLIDE QPDT 30V 250MA 9.3MM 2POLE
Switch Type DIP
Current Rating (mA) 250
Number of Switches 1
Contact Arrangement Linked
Switch Action Changeover
Contact Material Gold Finish
Termination Through hole
Sealed Yes

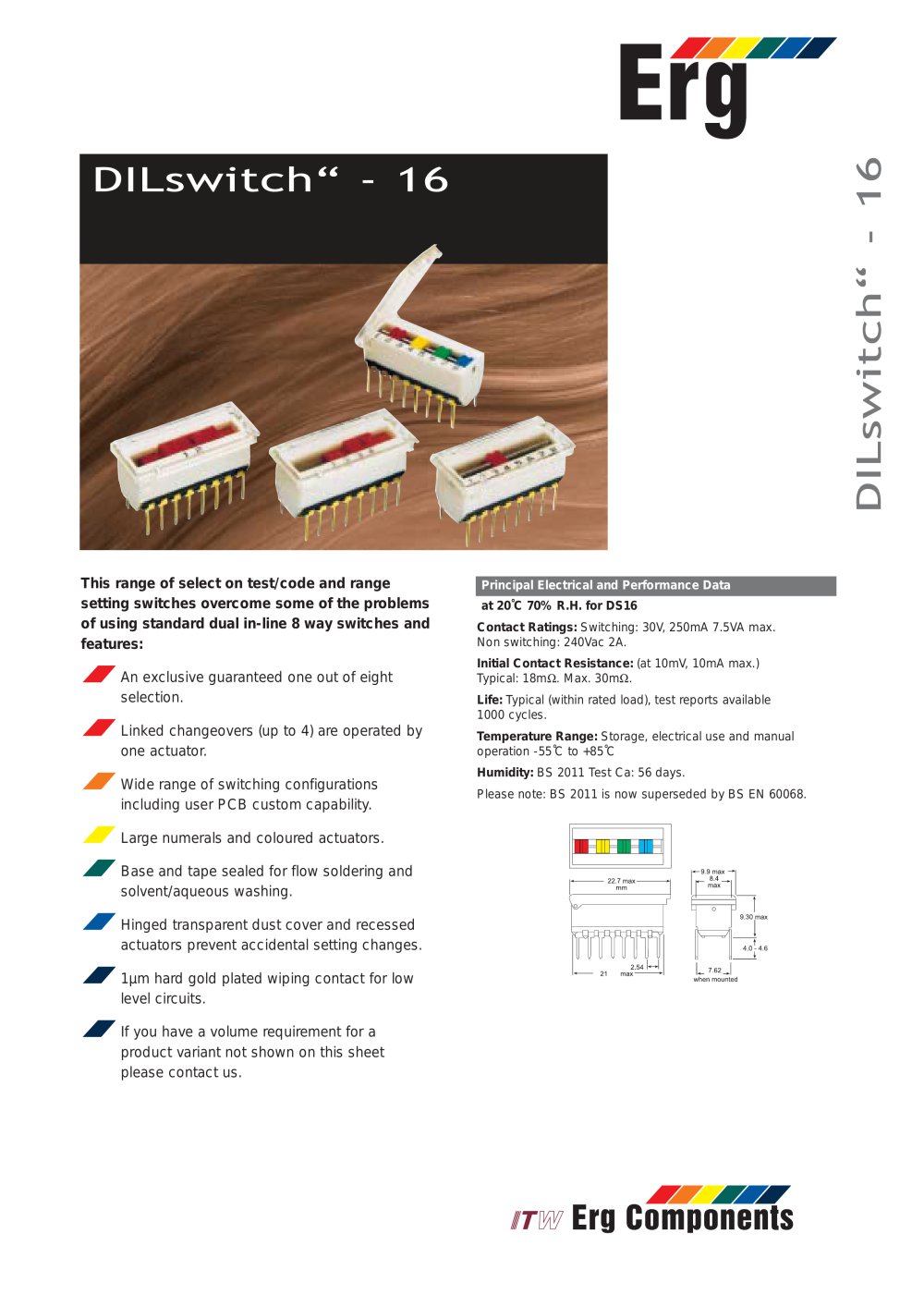

DIL switch with 16 positions

  • gold contacts
  • Switching capacity not switching (AC): 2A, 250V
  • Switching capacity switching (AC): 250mA, 30V
  • PCB mounting
  • Related changer be switched to an actuator
  • 16 positions
  • Various configurations
DIL Schalter mit 16 Positionen
contacts Connected Contacts Unconnected
DS16C-1-8 DS16D-1-8

DS16C-VAR22 DS16D-VAR22

DS16C-VAR23 DS16D-VAR23

DS16C-VAR24 DS16D-VAR24

DS16C-1-6 DS16D-1-6

DS16C-var32 DS16D-var32

DS16C-2-4 DS16D-2-4

DS16C-4-2 DS16D-4-2

DS16C-1-5 DS16D-1-5

DS16C-1-4

DS16C-1.3 + 1.3 DS16D-1.3 + 1.3

DS16C-3-2 DS16D-3-2

Manufacturer:Electronic Components
