Description

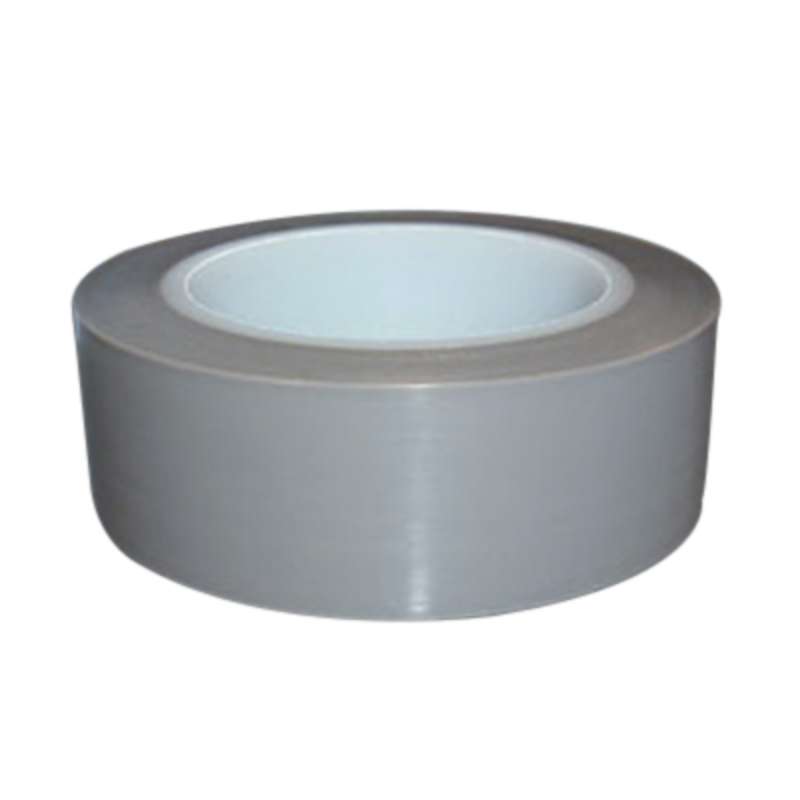

The DeWAL 204-2HD-.50 is a pressure sensitive tape using skived PTFE film with a high temperature silicone adhesive. Those products designated with an “asterisk” are UL recognized component
204-2HD is a 3.5 mil, skived & tensilized PTFE film that is coated with “high temperature” silicone adhesive. The tensilized film provides higher tensile strength, lower elongation and higher dielectric strength than regular skived film. Those products are used primarily in electrical appliances such as coil wraps and separators, transformer, slot liners and harness wrapping where good insulation and heat resistance are needed. There are also used in mechanical applications requiring high temperature resistance and a non-stick surface such as roll protection in flat die extrusion.
UL Recognized
High tensile strength
Low friction
Non-stick surface
High heat resistance
Specifications
Series: DW204HD
Product Type: Film Tape
Backing Material: PTFE Film
Adhesive Material: Silicone
Material Category: Plastic
Width: 0.5in
Length: 36yd
Resistance Properties: Heat Resistant Insulation Resistant High Temperature Resistant
Applications: Coil Wraps, Separators, Transformer, Slot Liners, Harness Wrapping, Mechanical
These tapes are used primarily in electrical applications such as coil wraps and separators, transformer, slot liners and harness wrapping where good insulation and heat resistance are needed. They are also used in mechanical applications requiring high temperature resistance and good release properties such as aerospace composites.
Manufacturer:Electronic Components
Datasheet:Others/204-2HD.pdf
