Description

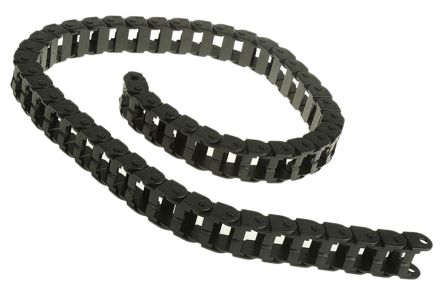

Igus easy chain cable; 28.2×19.3mm Can be mounted and dismantled at “every point”. Cable is simply pressed from outside, saves assembly time. Low-cost, light-weight one-piece E-Kette. Limited torsional movement possible. “Push-button principle” holds the members of the chain securely together. Small pitch for quiet, smooth running. Interior that protects the wires. Inner division and connection elements available with integrated strain relief. ISO Class 2 according to ISO 14644-1.
Fast cable accessibility without opening and closing lids
Cables and hoses can be inserted directly into the chain through a split retaining crossbar along the outer radius of the chain
Ideal for short-cycle low speed applications
Torsional movement permitted
Smooth running
Fire-resistant to UL94-V2
Chain supplied in 1m lengths
Width 28.2 mm
Depth 19.3mm
Trunking/Chain Type Cable Chain
Colour Black
Material Igumid NG
Length 1m
Minimum Bend Radius 38 mm
Series E08, e-chain
Manufacturer:Electronic Components
Datasheet:Others/E08.20.038.0.pdf
