Description

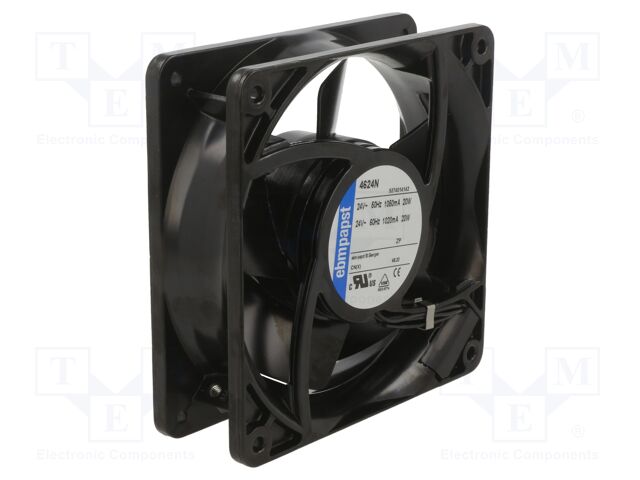

4624N EBMPapst Fan Tubeaxial 24VAC Square – 119mm L x 119mm H Sintec 93.0 CFM (2.60m³/min) 2 Terminals
The 4624N is an AC Axial Fan with external rotor shaded pole motor, AC low-voltage version. Metal fan housing and impeller. Electrical connection via 2 flat pins 3 x 0.5mm. Air intake over struts. Rotational direction CW looking at rotor.
Protected Against Overloading (Impedance Protected)
Designed for Maintenance-free Long-term Operation
Any Mounting Position
3100RPM Nominal Speed
Sleeve Bearing
Manufacturer
ebm-papst Inc.
Series
4000N
Packaging
Box
Voltage – Rated
24VAC
Size / Dimension
Square – 119mm L x 119mm H
Width
38.00mm
Air Flow
93.0 CFM (2.60m³/min)
Bearing Type
Sintec
Fan Type
Tubeaxial
Noise
47.0dB(A)
Power (Watts)
18.00W
RPM
3100 RPM
Termination
2 Terminals
Ingress Protection
–
Operating Temperature
14 ~ 140°F (-10 ~ 60°C)
Approval Agency
–
Weight
1.2 lbs (544.3 g)
Current Rating (Amps)
0.950A
Voltage Range
–
Material – Frame
Metal
Material – Blade
Metal
Lifetime @ Temp.
–
Base Product Number
4624
