Description

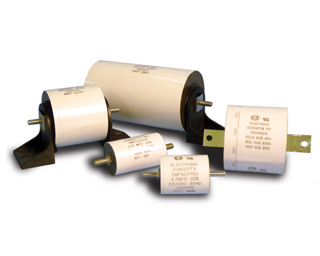

The 5MPA SERIES represents an excellent solution for AC motor run applications where high PWM and other feedback currents are present on top of line frequency. The 5MPA is superior to other brands. This is due to its unique high current and frequency response terminations, plus a dry film construction.
Specifications
Capacitance Range
1.0µF to 300.0µF
Capacitance Tolerance
Standard tolerance is ±5%.
Tolerance of ±3% is also available.
Operating Temperature Range
-55°C to +85°C
Enclosure/ Construction
Polypropylene film in a polyester with epoxy endfill.
Terminals are tin plated copper.
Voltage Rating
VAC: 300VAC to 900VAC
VDC: 450VDC to 1300VDC
Quality Control
Capacitors are tested 100% for:
Capacitance
Tolerance
Dissipation Factor
Dielectric withstanding voltage
Insulation Resistance
Equivalent Series Resistance (ESR)
Manufacturer:Eci
Datasheet:5MPA_eci-capacitors.pdf
