Description

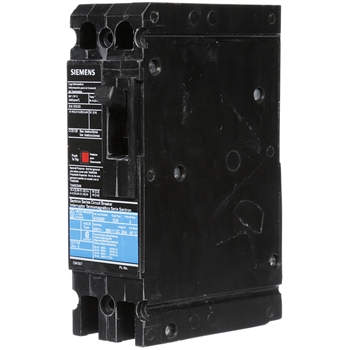

Siemens ED62B100 circuit breaker 100 amps, 25kA@480V AIC Rating, ED type, 600 volts Molded Case Circuit Breaker Bolt-On
The Siemens ED62B100 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 100 Amps and a voltage rating of 600VAC. It has an interrupting rating of 25kAIC at 480V. The ED62B100 has a bolt-on connection type and includes long time and instantaneous trip functions.
ED62B100 Specifications
Part Number: ED62B100
Manufacturer: Siemens
Amperage: 100A
Voltage: 600VAC
Poles: 2
Mounting Type: Bolt-On
Interrupt Rating: 18kAIC
Series/Frame: ED
Frame Amps: 125A
Trip Unit: Thermal Magnetic
Load Side Lug Terminals
UL Listed
Manufacturers Siemens
Sub-Category Molded Case
Family Sentron Series
TypeED Weight5 lbs
Voltage600 Amperage100
ProtectionThermal Magnetic Poles2
FunctionsLI – Long-Time and Instantaneous ConnectionBolt-On
Frame TypeED Frame Phase1
AIC Rating25kA@480V
ED62B100 is a 2-pole molded case circuit breaker designed for reliable protection in 600V electrical systems. This Siemens breaker features a 100A thermal magnetic trip unit and is built for bolt-on mounting in compatible panels. The ED62B100 offers dependable circuit protection for commercial and industrial applications, with a robust design for long-term performance and safety. Its molded case construction and load side lug terminals provide secure connections and easy installation.
