Description

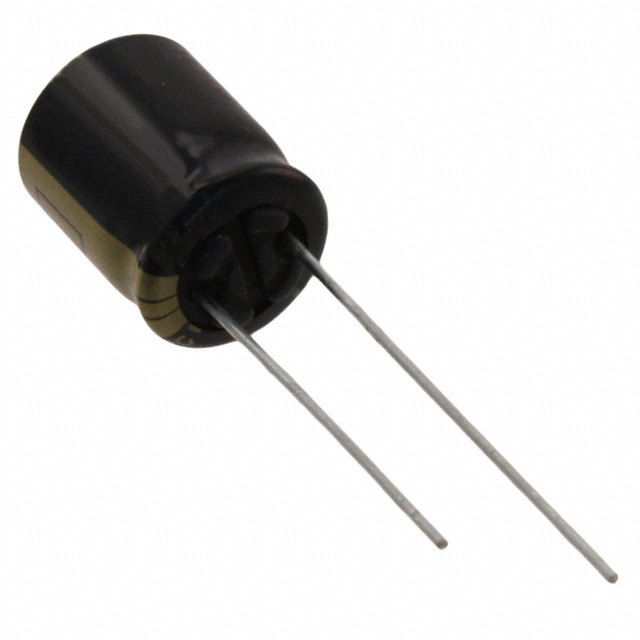

Panasonic EEU-FM1E331 Aluminum Electrolytic Capacitor 330uF 25V 20% RADIAL ROHS
Specification
SMD Not SMD
Body shape Radial lead type
Polarity type Polar
Rated voltage (V) 25
Capacitance (micro F) 330
Tolerance on capacitance (%) -20 to 20
Tangent of loss angle (max.) 0.14
Leakage current (max.) (micro A) 82.5
Category temperature range (Cel) -40 to 105
Body diameter (mm) 10
Body length (mm) 12.5
Lead (terminal) pitch (mm) 5
Rated ripple current-1 (freq.) (Hz) 100000
Rated ripple current-1 (mA) 1290
Rated ripple current-1 (unit) mA r.m.s. (root mean square)
Impedance-1 (frequency) (Hz) 100000
Impedance-1 (max. value) (m Ohm) 38
Endurance (h) 4000
Forming & packaging feature Bulk (no lead wire or terminal forming), bag packing
Appearance P.E.T. sleeve sheathing (metal case)
Quantity (min. packaging unit) (PCS.) 200
Weight (Typ.) (g) 1.6
Manufacturer Part Number: EEU-FM1E331
Manufacturer: Panasonic
